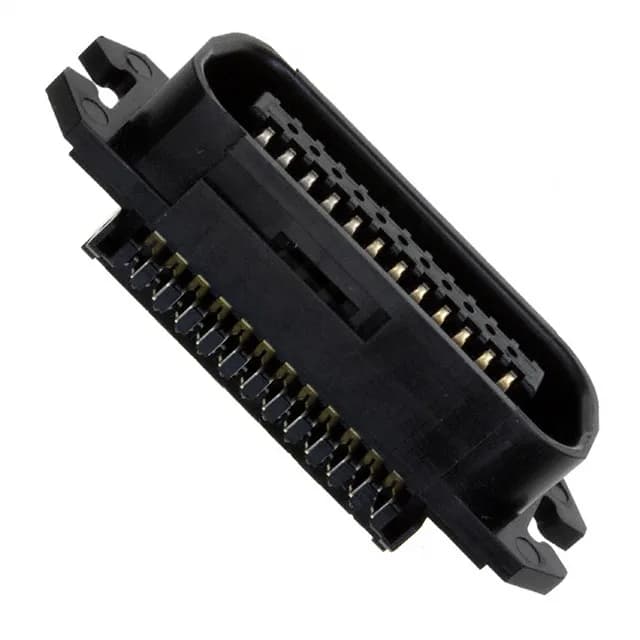

TE Connectivity 552272-1 CHAMP .085 IDC Plug, 24 Pos, Gold

MPN552272-1
Active

TE Connectivity CHAMP.085 series, 552272-1, IDC plug, 24 positions, 2 rows, gold-plated contacts (30.0µin), free-hanging in-line, bail lock, tray.

$12.1400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCHAMP .085
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

552272-1 specifications
ParameterValue
SeriesCHAMP .085
MountingFree Hanging (In-Line)
Connector typeCenter Strip Contacts
PackageTray
FeaturesBail Lock
TerminationIDC
Contact finishGold
Rows2
Positions24
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity 552272-1 is a 24-position IDC plug from the CHAMP.085 series, terminated to ribbon cable in one press operation. Free-hanging (in-line) mounting means it lands at the end of a cable bundle, not on a board.

Why the Bail Lock and Gold Plating Matter for the Fit

The bail lock, not just a plastic ramp, clamps the plug to the receptacle housing so the cable pull or machine vibration doesn't work the contacts loose. Together they make this a plug suited for environments where a standard IDC latch might walk open.

No crimp tool, no solder; just a press. The free-hanging style means the cable assembly terminates in-line, not at a right angle.

Frequently asked questions

What is the mating connector for 552272-1?

The 552272-1 mates with a CHAMP.085 receptacle housing of the same 24-position, 2-row layout. The bail lock on the plug engages the receptacle's locking feature.

Is 552272-1 RoHS compliant?

Yes, it is ROHS3 compliant, meeting the latest EU directive without exemptions.
