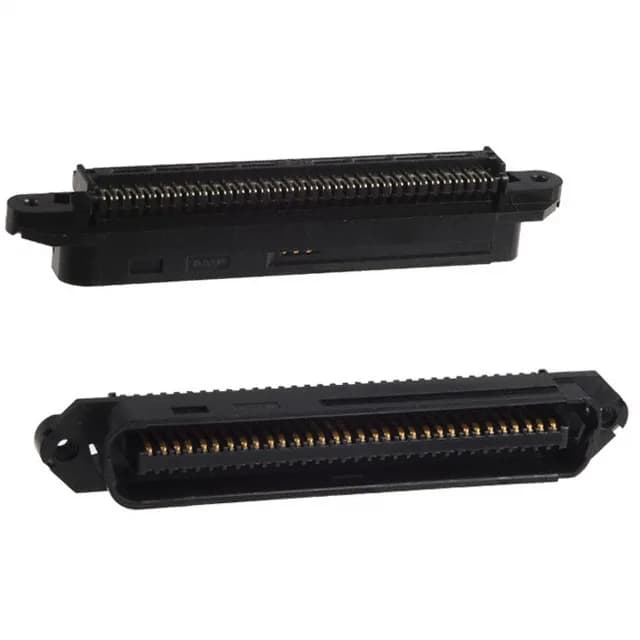

TE Connectivity CHAMP.085 series IDC plug, 64 positions, 2 rows, 30.0µin gold contact finish, 4-40 threaded flange, free-hanging in-line mount, tray package.
| Parameter | Value |
|---|---|
| Series | CHAMP .085 |
| Mounting | Free Hanging (In-Line) |
| Connector type | Center Strip Contacts |
| Package | Tray |
| Termination | IDC |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Positions | 64 |
| Contact finish thickness | 30.0µin (0.76µm) |
The TE Connectivity 552285-1 is a 64-position, 2-row IDC plug from the CHAMP.085 series, terminated via insulation displacement for mass-termination of ribbon cable or discrete wires. The 4-40 threaded flange locks the plug to the mating receptacle, preventing vibration-induced disconnection in industrial or rack-mount gear.
Yes, the 552285-1 is ROHS3 Compliant.
