TE Connectivity AMP Connectors 552391-1 — Centronics Connectors

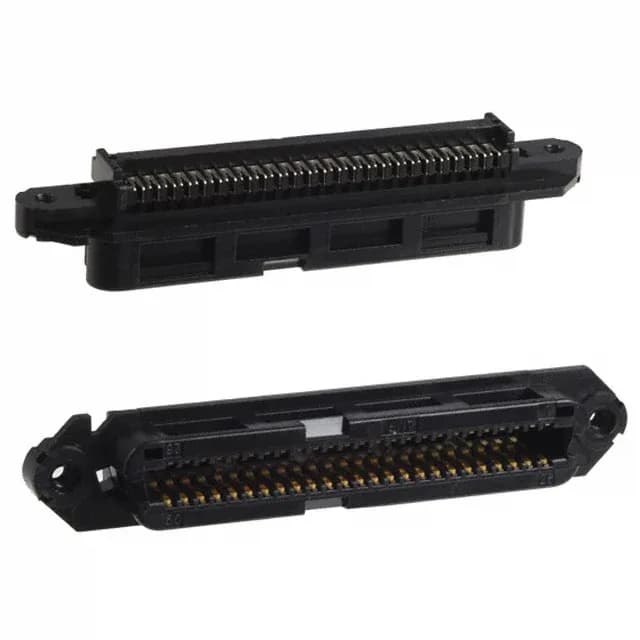

TE Connectivity 552391-1 CHAMP .085 Receptacle, 50 Pos IDC

MPN552391-1
Active

TE Connectivity CHAMP.085 receptacle, 552391-1, 50 positions, 2 rows, IDC termination, free hanging, 30.0µin gold contact finish, housing/shell 4-40 flange.

$9.3300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCHAMP .085
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

552391-1 specifications
ParameterValue
SeriesCHAMP .085
MountingFree Hanging (In-Line)
Connector typeOuter Shroud Contacts
PackageTray
TerminationIDC
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions50
Contact finish thickness30.0µin (0.76µm)

Product details

The 4-40 threaded flange on the housing allows panel-mounting with screws, giving a secure mechanical lock in vibration-prone environments like industrial control cabinets or rack-mounted equipment.

Termination is IDC, which requires a specific hand or pneumatic press tool to push the cable conductors into the insulation-displacement slots — no wire stripping or soldering is needed. The free-hanging (in-line) mounting style means the connector is used as a cable-end termination, not soldered to a PCB.

Frequently asked questions

What is the mating connector for 552391-1?

The 552391-1 mates with a CHAMP.085 plug header from the same series. The exact mating part number depends on the number of positions and orientation required; check the CHAMP.085 product line for a 50-position male plug with IDC or solder termination.

Is 552391-1 RoHS compliant?

Yes, the 552391-1 is ROHS3 Compliant, meaning it meets the EU RoHS directive for restriction of hazardous substances.

What tools are required for IDC termination of 552391-1?

IDC termination requires a dedicated press tool (hand or pneumatic) that pushes the cable conductors into the insulation-displacement slots. TE Connectivity offers specific tooling for the CHAMP.085 series; consult the product drawing for the recommended tool part number.
