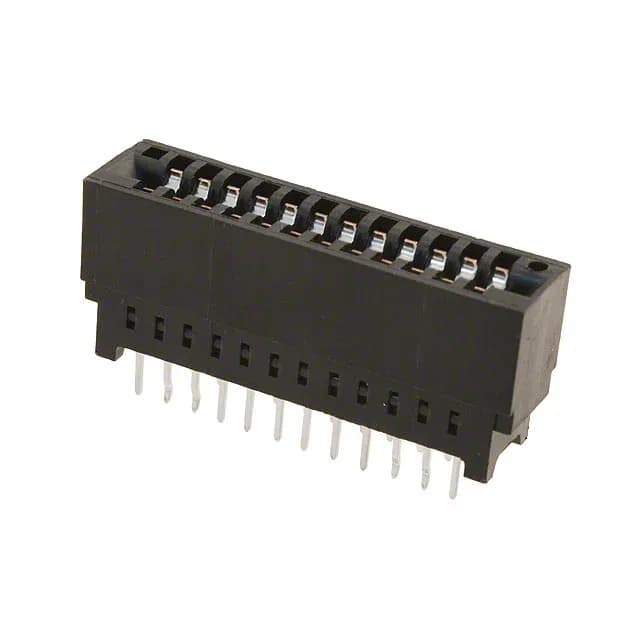

TE Standard Edge II, Dual Female Edge Connector, 5530843-1, 24 Positions, 2 Rows, 0.100" (2.54mm) Pitch, Solder Termination, Through Hole, Gold 30.0µin
| Parameter | Value |
|---|---|
| Series | Standard Edge II |
| Card type | Non Specified - Dual Edge |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 85°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Material - insulation | Polyester, Glass Filled |
| Pitch | 0.100\" (2.54mm) |
| Gender | Female |
| Package | Bulk |
| Read out | Dual |
| Termination | Solder |
| Card thickness | 0.054\" ~ 0.070\" (1.37mm ~ 1.78mm) |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 24 |
| Contact finish thickness | 30.0µin (0.76µm) |
The TE 5530843-1 is a dual-readout female edge connector from the Standard Edge II series, built for double-sided PCB edge cards. The trick is the card thickness window: it accepts boards from 0.054" to 0.070" (1.37 mm to 1.78 mm). A standard 0.062" board fits, but a 0.093" power card or a thin 0.031" flex won't seat properly.
The card thickness range is 0.054" to 0.070" (1.37 mm to 1.78 mm). The 30.0 µ" gold is a mid-grade thickness.
It accepts edge cards with a thickness of 0.054" to 0.070" (1.37 mm to 1.78 mm). A standard 0.062" board is within range; verify your specific PCB thickness before ordering.
