TE Connectivity AMP Connectors 5535089-5 — Backplane Connectors

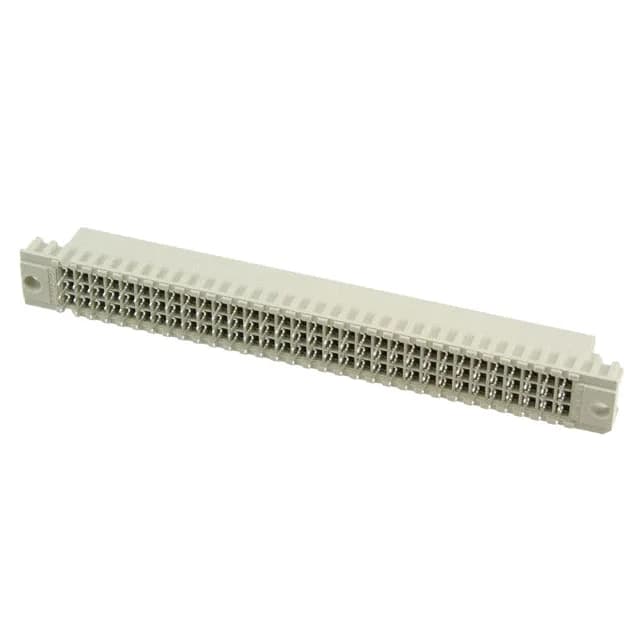

TE Connectivity 5535089-5 Eurocard DIN 41612 Receptacle

MPN5535089-5
Active

TE Connectivity Eurocard DIN 41612 Type C receptacle, 96 positions, 3 rows, 0.100" (2.54mm) pitch, through-hole solder termination, gold-plated contacts.

$5.4100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5535089-5 datasheet (PDF)
RoHSRoHS Compliant
SeriesEurocard
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5535089-5 specifications
ParameterValue
SeriesEurocard
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Operating temperature-55°C ~ 125°C
Material - insulationPolymer Thermoplastic, Glass Filled
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
StyleC
PackageBulk
TerminationSolder
Level, class2
Contact finishGold
Rows3
Positions96

Product details

The TE Connectivity 5535089-5 is a 96-position DIN 41612 Type C receptacle from the Eurocard series, built for backplane and card-cage interconnects in industrial control, telecom, and test equipment.

Temperature Range and Environment

Rated from -55°C to 125°C operating, this receptacle lives comfortably in industrial cabinets that cycle from cold storage to full-load heat, or in outdoor telecom shelters where the internal temperature swings wide. The UL94 V-0 rated housing means it passes the flame test for equipment installed inside a controlled enclosure — no special handling needed for regulatory sign-off.

Frequently asked questions

Where can I buy the 5535089-5 and what is the lead time?

Submit an RFQ for your BOM quantity and we'll quote the lead time against that specific line.

Is 5535089-5 RoHS compliant?

Yes, the 5535089-5 is RoHS Compliant as listed on the product record.

Is 5535089-5 compatible with DIN 41612 Type C?

It mates with the matching Type C male header of the same position count and row arrangement.
