TE Connectivity AMP Connectors 5535653-1 — Card-Edge Connectors

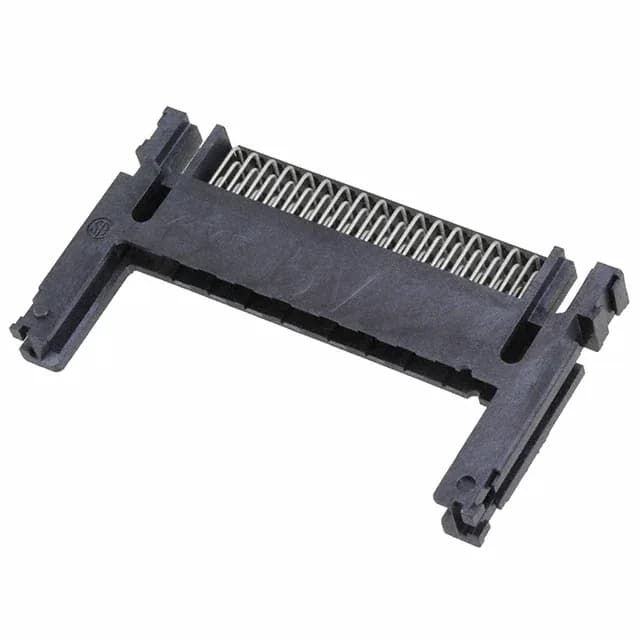

TE Connectivity 5535653-1 PCMCIA Connector, 68 Pos, R/A

MPN5535653-1
Active

TE Connectivity, PCMCIA connector, 5535653-1, 68 positions, through-hole right-angle, push-pull, gold 30.0µin contacts, bulk package.

$14.3400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5535653-1 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5535653-1 specifications
ParameterValue
Card typePCMCIA
MountingThrough Hole, Right Angle
Connector typeConnector
Mounting featureNormal, Standard - Top
Height above board0.275\" (6.99mm)
PackageBulk
Contact finishGold
Positions68
Contact finish thickness30.0µin (0.76µm)
Insertion, removal methodPush In, Pull Out

Product details

PCMCIA Card Socket, 68-Position Right-Angle

The TE Connectivity 5535653-1 is a 68-position PCMCIA card connector designed for through-hole, right-angle mounting on a host PCB. It accepts standard PCMCIA Type I, II, and III cards using a push-in, pull-out insertion method — no ejector mechanism, so the card is inserted and removed manually. The 0.275" (6.99 mm) height above board sets the card plane relative to the PCB, which matters for enclosure slot alignment and card insertion depth. The connector is rated for a standard, top-mount configuration — the card sits above the board, not recessed into it.

Frequently asked questions

Is the 5535653-1 RoHS compliant?

Yes, the 5535653-1 is ROHS3 compliant.

What is the 5535653-1 equivalent part?

The 2-338063-4 is a functional peer — same 68-position PCMCIA series, Bulk packaging, and Active lifecycle. Verify mechanical keying against your application before substituting.

Is the 5535653-1 compatible with Type II PCMCIA cards?

Yes, the 68-position socket accepts standard PCMCIA Type I, II, and III cards.
