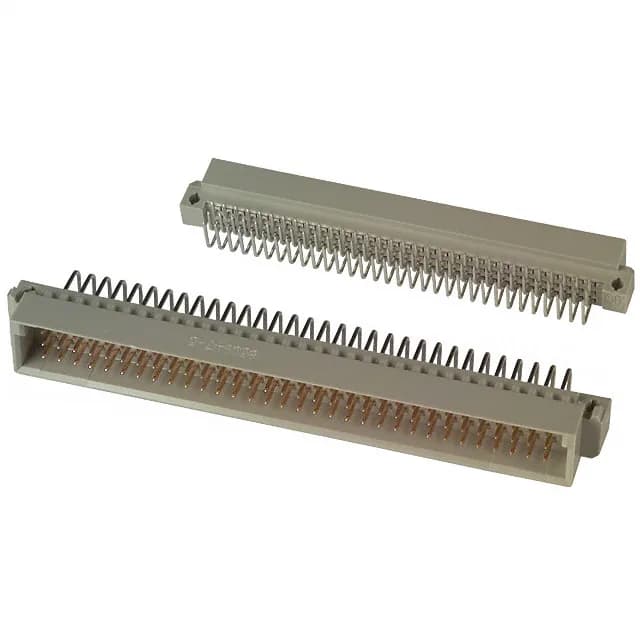

TE Connectivity Eurocard DIN 41612 plug, Style C, 96 positions, 3 rows, 0.100" (2.54mm) pitch, through-hole right-angle, gold contact finish, UL94 V-0, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Series | Eurocard |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Operating temperature | -55°C ~ 125°C |
| Material - insulation | Polymer Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Style | C |
| Package | Bulk |
| Termination | Solder |
| Level, class | 2 |
| Contact finish | Gold |
| Rows | 3 |
| Positions | 96 |
The TE Connectivity 5536010-5 is a 96-position DIN 41612 plug, Style C, from the Eurocard series.
ROHS3 compliant — meets the current EU directive for lead-free and restricted substances.
The 5536010-5 is a DIN 41612 Style C plug (male pins). Confirm the specific receptacle order code from the same Eurocard series for your backplane design.
