Eurocard DIN 41612 Plug for Backplane Daughtercards
The TE Connectivity 5536385-5 is a 64-position Eurocard series DIN 41612 plug with male pins, designed for right-angle through-hole mounting on a daughtercard.

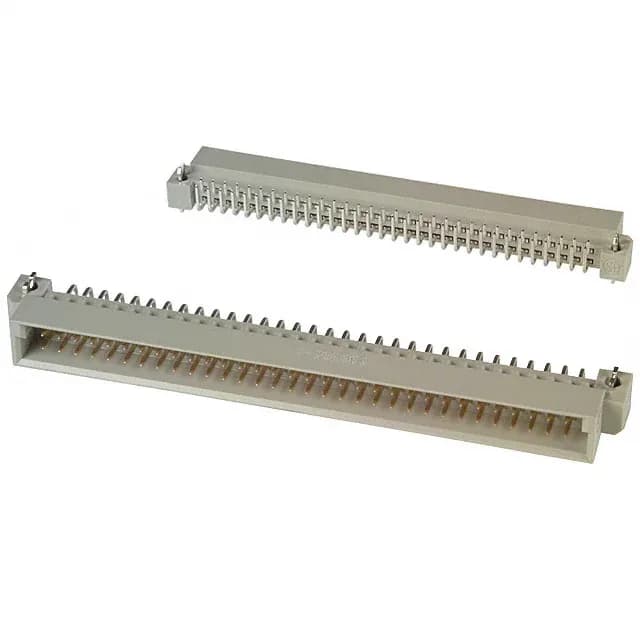

TE Connectivity 5536385-5 Eurocard Plug, 64 Pos
MPN5536385-5
Active
TE Connectivity Eurocard DIN 41612 plug, 64 positions, 2 rows, 0.100" (2.54mm) pitch, right-angle through-hole, gold contacts, board lock, UL94 V-0.
$8.7200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesEurocard
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Eurocard |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Operating temperature | -55°C ~ 125°C |
| Material - insulation | Polymer Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Style | B |
| Package | Bulk |
| Features | Board Lock |
| Termination | Solder |
| Level, class | 2 |
| Contact finish | Gold |
| Rows | 2 |
| Positions | 64 |
Product details
Frequently asked questions
Where can I buy the TE Connectivity 5536385-5?
Submit a request for quote to confirm current availability and pricing for your BOM quantity.
What is the mating connector for the 5536385-5?
This Eurocard plug mates with a standard DIN 41612 style B receptacle housing on the backplane. The exact mating half order code depends on the backplane connector series — confirm the receptacle part number against the 64-position, 0.100" pitch, style B interface.
