TE Connectivity AMP Connectors 5536386-5 — Backplane Connectors

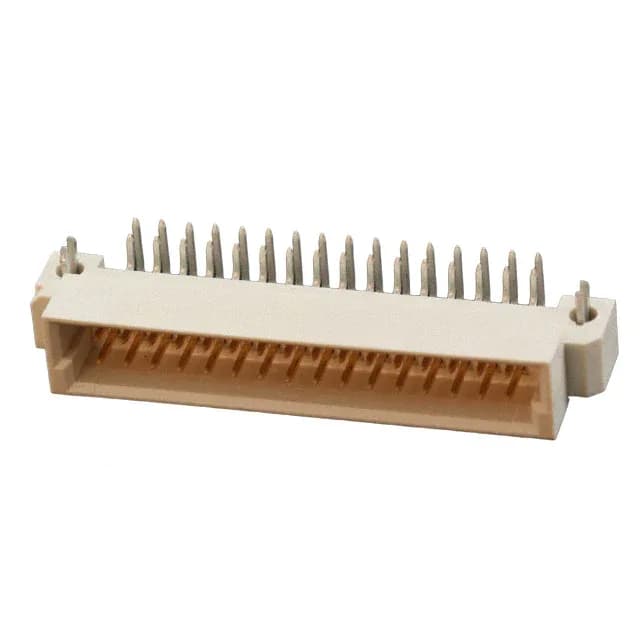

5536386-5 TE DIN 41612 Plug, 32 Pos, 0.100" Pitch, RA

MPN5536386-5
Active

TE Connectivity AMP Eurocard series, DIN 41612 plug, male pins, 32 positions, 0.100" (2.54mm) pitch, 2 rows, right-angle through-hole solder, gold contact finish, board lock, UL94 V-0, -55°C to 125°C

$8.7300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesEurocard
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5536386-5 specifications
ParameterValue
SeriesEurocard
MountingThrough Hole, Right Angle
Connector typePlug, Male Pins
Operating temperature-55°C ~ 125°C
Material - insulationPolymer Thermoplastic, Glass Filled
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
StyleB/2 (1/2 B)
PackageBulk
FeaturesBoard Lock
TerminationSolder
Level, class2
Contact finishGold
Rows2
Positions32

Product details

32-position, 0.100" pitch, right-angle DIN plug

The 5536386-5: This is a 32-position DIN 41612 plug from TE's Eurocard series, with male pins arranged in two rows at 0.100" (2.54mm) pitch. Style B/2 (1/2 B) keying means the connector has a specific coding that prevents it from mating with a receptacle of a different key — useful in a multi-slot backplane where each slot needs a distinct key to avoid misinsertion.

Board lock and solder termination for backplane duty

Without them, the connector can shift under vibration and open the solder joints. The insulation is a glass-filled polymer thermoplastic rated UL94 V-0, so it won't sustain a flame inside an enclosure.
