The TE Connectivity 5536510-3 is a 96-position Futurebus receptacle from the Z-PACK series, loaded across all 4 rows. The 0.079" (2.00 mm) pitch packs high signal density into a board-edge, right-angle through-hole mount — the footprint a backplane layout engineer needs to match for a 96-circuit bus.

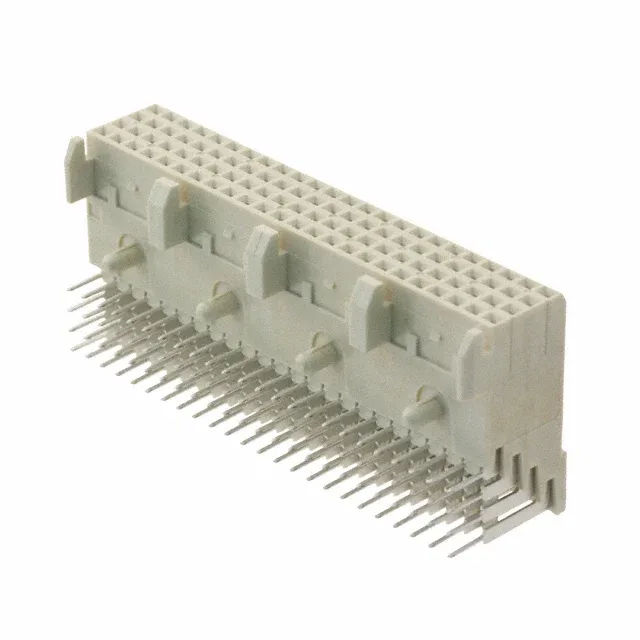

TE Connectivity 5536510-3 Z-PACK Futurebus Receptacle
MPN5536510-3
Active
TE Connectivity Z-PACK Futurebus receptacle, 96 positions, 4 rows, 0.079" (2.00mm) pitch, gold contact finish, board edge through-hole right-angle mount, UL94 V-0, tube.
$12.9600Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | Z-PACK |
| Mounting type | Board Edge, Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 30V |
| Operating temperature | -55°C ~ 125°C |
| Color | Natural |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.079\" (2.00mm) |
| Package | Tube |
| Features | Spacer |
| Termination | Solder |
| Contact finish | Gold |
| Rows | 4 |
| Positions | 96 |
Product details
Frequently asked questions
What is the pitch of the 5536510-3?
The pitch is 0.079" (2.00 mm), which sets the board footprint for the 96-position, 4-row layout.
Is the 5536510-3 RoHS compliant?
Yes, it is ROHS3 Compliant.
