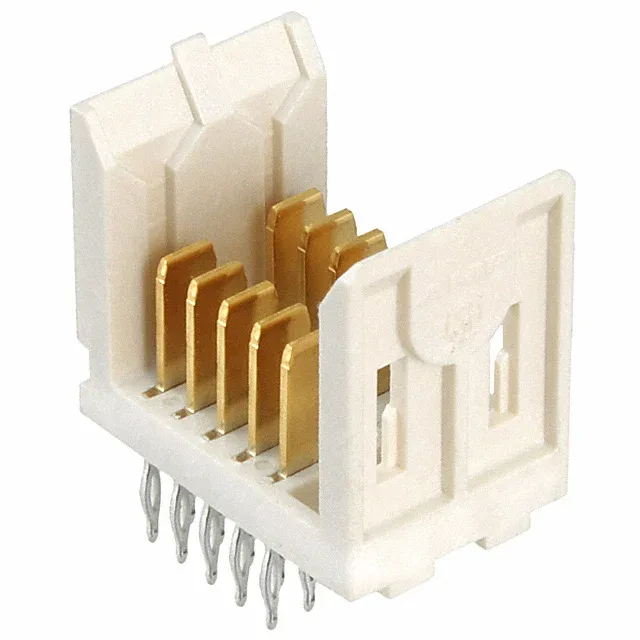

5536642-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 5536642-1 Z-PACK Futurebus Header, 10 Power

MPN5536642-1
Active

TE Connectivity Z-PACK Futurebus header, 5536642-1, 10 power positions, 5 rows, 0.236" (6.00mm) pitch, press-fit through-hole, gold flash contacts, natural housing, UL94 V-0.

$9.8600Ref. price · indicative, final on quote
5536642-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

5536642-1 Technical Specifications
ParameterValue
SeriesZ-PACK
Mounting typeThrough Hole
Connector typeHeader, Male Blades
Voltage rating30V
Operating temperature-55°C ~ 125°C
ColorNatural
Material flammability ratingUL94 V-0
Pitch0.236\" (6.00mm)
PackageTube
TerminationPress-Fit
Contact finishGold
Rows5
Positions10
Contact layout, typical10 Power
Contact finish thicknessFlash

Product details

Backplane Power Header for Futurebus Systems

The TE Connectivity 5536642-1 is a Z-PACK series header in the Futurebus connector style, carrying 10 power positions arranged across 5 rows at a 6.00 mm pitch. This is a male blade header designed for press-fit termination into a through-hole backplane, with all positions loaded. The natural UL94 V-0 housing and gold flash contacts suit it for power distribution within a card cage or midplane assembly where the Futurebus form factor is specified. The 10 power contacts are laid out in a dedicated power section of the connector, meaning this header is not a mixed-signal part — every position carries the same bus-level current duty.

Press-Fit Termination for Solderless Backplane Assembly

The through-hole mounting gives the header mechanical retention against the insertion force of the mating receptacle.

Rated for Industrial Temperature Range and Flame-Retardant Housing

Gold flash contacts (minimum gold thickness not specified beyond flash) provide corrosion protection for the mating interface in a controlled indoor environment.

Frequently asked questions

Where can I buy 5536642-1?

The 5536642-1 is sourced to order through independent distribution. Submit an RFQ for current availability and pricing — confirmed at quote time.

What is the mating connector for 5536642-1?

The 5536642-1 mates with a Z-PACK Futurebus receptacle housing that accepts the male blades. Match the 10-position power layout and 5-row configuration of the mating half.
