TE Connectivity AMP Connectors 553811-1 — Centronics Connectors

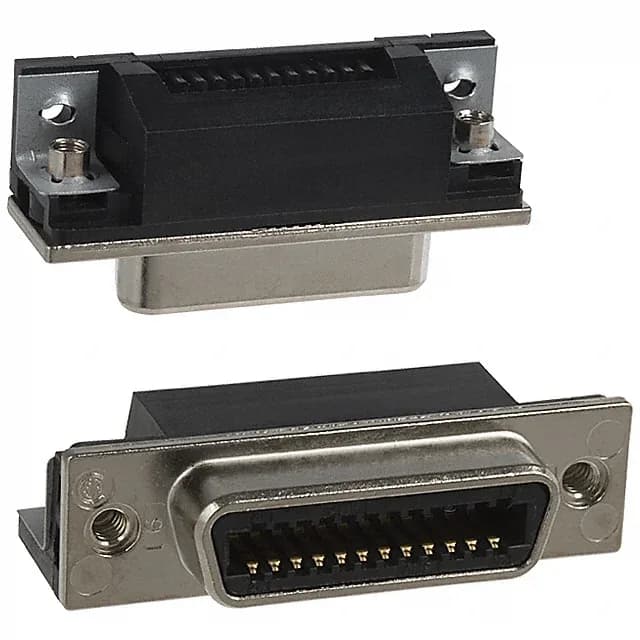

TE 553811-1 CHAMP .085 Receptacle, 24 Pos, Shielded

MPN553811-1
Active

TE Connectivity CHAMP.085 receptacle, 24 positions, 2 rows, right-angle solder, panel mount, shielded, gold 30.0µin contacts, RoHS non-compliant.

$14.0600Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesCHAMP .085
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

553811-1 specifications
ParameterValue
SeriesCHAMP .085
MountingPanel Mount, Through Hole, Right Angle
Connector typeOuter Shroud Contacts
PackageTray
FeaturesShielded
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (6-32)
Rows2
Positions24
Contact finish thickness30.0µin (0.76µm)

Product details

Connector Identity and Mounting

The TE Connectivity 553811-1 is a 24-position receptacle from the CHAMP.085 series, configured with outer shroud contacts in a 2-row layout. The housing/shell flange uses 6-32 threaded inserts for panel securement, a standard feature for rack-and-panel or bulkhead installations where the connector must withstand repeated mating without stressing the solder joints.

Contact Plating and Shielding

The shielded construction indicates a metallised shell or shroud that provides EMI containment, making this receptacle a candidate for data-acquisition, instrumentation, or telecom backplane I/O where radiated emissions or susceptibility must be managed.

Frequently asked questions

Is the 553811-1 RoHS compliant?

No — the 553811-1 is listed as RoHS non-compliant. This means it may contain lead or other restricted substances above the allowed thresholds. Verify your application's exemption requirements before specifying.

What connector mates with the 553811-1 receptacle?

The 553811-1 is a CHAMP.085 receptacle with outer shroud contacts. It mates with the corresponding CHAMP.085 plug (male) connector in the same series, which carries the matching 2-row, 24-position layout and 6-32 threaded flange. The specific mating plug order code should be confirmed against the series catalog to ensure the shroud and keying match.
