TE Connectivity AMP Connectors 5552212-1 — Centronics Connectors

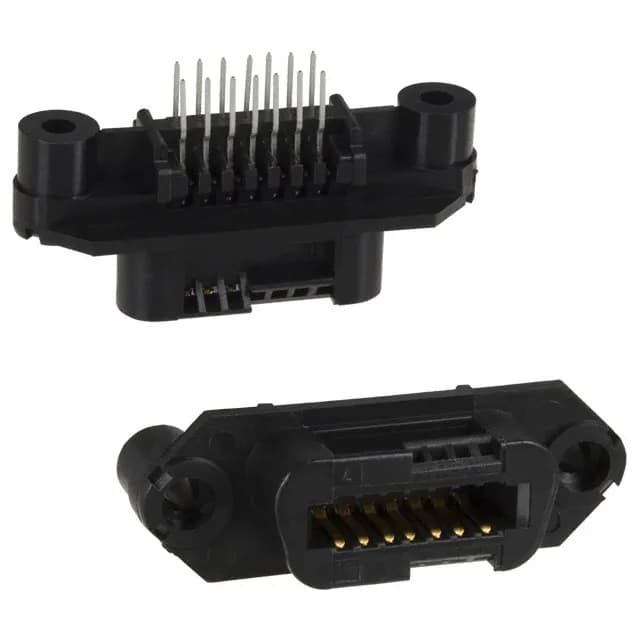

TE 5552212-1 CHAMP .085 Receptacle, 14 Pos, 30.0µin Gold

MPN5552212-1
Active

TE Connectivity CHAMP.085 receptacle, 14 positions, 2 rows, through-hole solder, gold-plated contacts, 30.0µin gold thickness, vertical orientation, tray package.

$11.4100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCHAMP .085
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5552212-1 specifications
ParameterValue
SeriesCHAMP .085
MountingThrough Hole
Connector typeOuter Shroud Contacts
PackageTray
TerminationSolder
Contact finishGold
Flange featureBoard Side
Rows2
Positions14
Contact finish thickness30.0µin (0.76µm)

Product details

It uses outer shroud contacts that accept the mating plug's pin contacts — a common interface for internal I/O or panel-to-board cabling in industrial and telecom equipment.

This receptacle mates with a CHAMP.085 series plug that carries the pin contacts — the exact mating order code depends on the circuit count and whether the plug is a free-hanging cable mount or panel-mount variant. The through-hole solder termination requires the PCB to have plated through-holes matching the 0.085-inch contact spacing; the vertical orientation means the connector body sits flush to the board with no right-angle bend in the signal path.

Frequently asked questions

What connector mates with 5552212-1?

The 5552212-1 mates with a CHAMP.085 series plug that carries the pin contacts. The mating half is the plug version of the same series, with the same 0.085-inch contact spacing and 14-position count.
