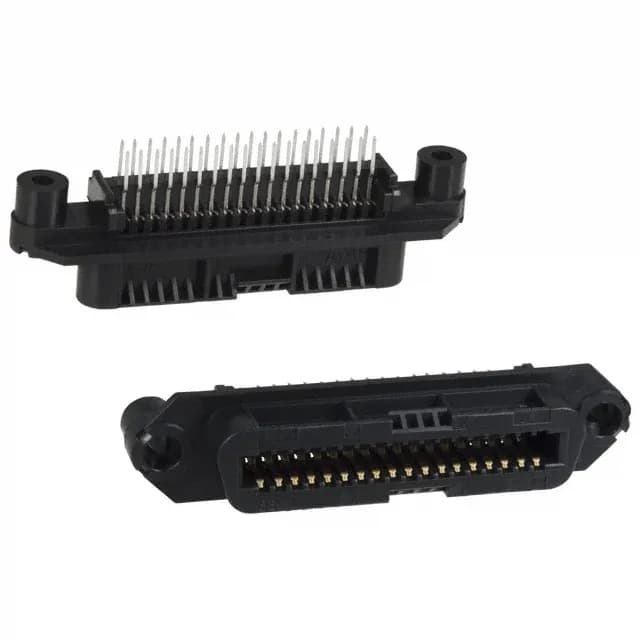

TE Connectivity CHAMP.085 receptacle, 36 circuits, 2 rows, through-hole solder termination, gold-plated contacts 30.0µin, board-side flange, tray package.
| Parameter | Value |
|---|---|
| Series | CHAMP .085 |
| Mounting | Through Hole |
| Connector type | Outer Shroud Contacts |
| Package | Tray |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Board Side |
| Rows | 2 |
| Positions | 36 |
| Contact finish thickness | 30.0µin (0.76µm) |
The mating half is a CHAMP.085 plug with the same 36-position, 2-row layout and outer shroud contacts. The pinout follows the standard CHAMP.085 grid — each position corresponds to a matching contact in the plug. The board-side flange on the receptacle accepts a screw or bolt to lock the pair together, which is the primary strain relief for the mated interface.
The 36 positions match a 36-circuit BOM line exactly — no spare pins, no daisy-chaining.
The mating half is a CHAMP.085 plug with 36 positions and 2 rows, using the same outer shroud contact interface. The receptacle's board-side flange accepts a screw for mechanical locking.
Sourced to order from TE Connectivity. Availability and pricing confirmed at quote time.
