What this 50-position CHAMP .085 plug is for
The TE 5552402-1 is a 50-position plug from the CHAMP.085 series, terminated via IDC for mass-termination of ribbon cable. It mounts free-hanging with a right-angle cable exit, which keeps the cable parallel to the panel or backplane — useful where depth behind the I/O face is tight.

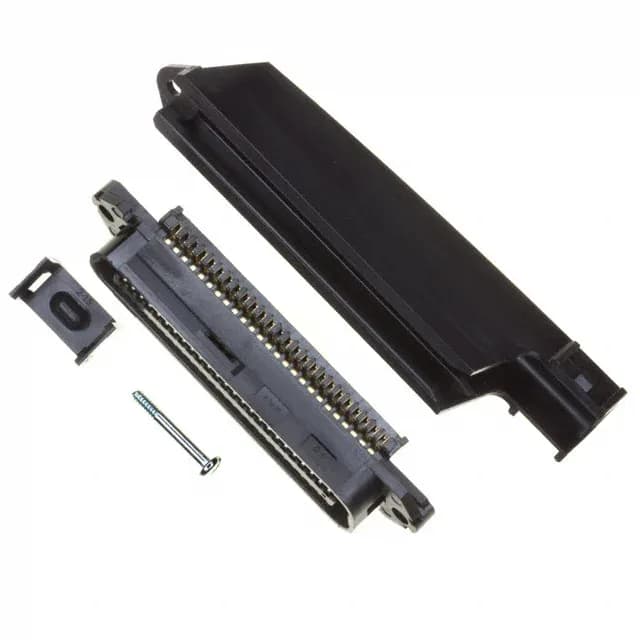

Backshell, cable clamp, and mounting hardware — what's on board
This plug ships with a backshell, cable clamp, and mounting hardware (housing/shell with 4-40 threaded inserts) already included — no separate ordering for strain relief or shield termination. The backshell and clamp give the cable exit a positive grip, which matters when the assembly gets tugged during routing or maintenance. The 4-40 flange feature lets you bolt the mated pair to a bulkhead or bracket, locking the connection against vibration.
Mating and sourcing for the 5552402-1
The IDC termination accepts standard 0.085" pitch ribbon cable, so the harness build is a straight press operation with the right tooling.
