TE Connectivity AMP Connectors 5552725-2 — Centronics Connectors

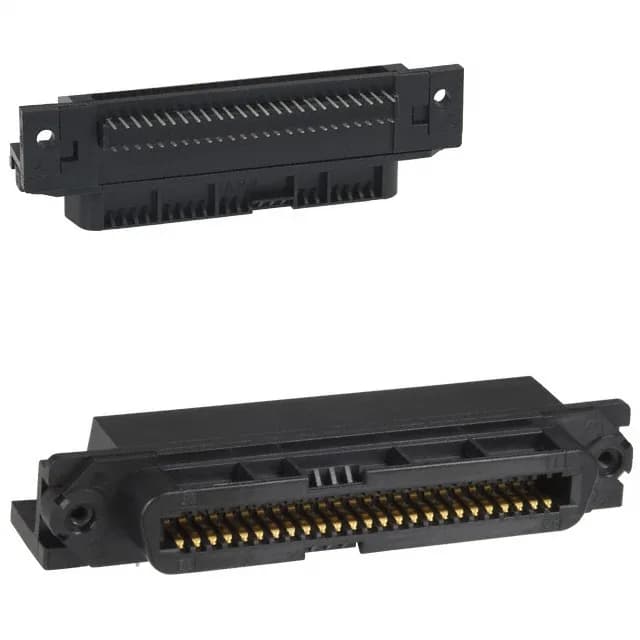

TE CHAMP .085 5552725-2, 50-Pos Receptacle, Right Angle

MPN5552725-2
Active

TE Connectivity CHAMP.085 receptacle, 5552725-2, 50 positions, dual-row, right-angle through-hole, panel mount, gold 30.0µin contacts, solder termination, tray.

$9.8200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCHAMP .085
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5552725-2 specifications
ParameterValue
SeriesCHAMP .085
MountingPanel Mount, Through Hole, Right Angle
Connector typeOuter Shroud Contacts
PackageTray
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions50
Contact finish thickness30.0µin (0.76µm)

Product details

It terminates via solder to a through-hole PCB and carries a panel-mount flange with unthreaded holes — the flange bolts to a chassis or bulkhead while the solder tails anchor to the board, a construction that handles strain at the cable exit without pulling on the solder joints.

The unthreaded flange holes accept a bolt or screw; the flange itself aligns the receptacle to the panel cutout before the solder joints are made. No press-fit, no IDC — plain solder termination, so the assembly step is straightforward reflow or hand-solder.

Frequently asked questions

Where can I buy 5552725-2?

The 5552725-2 is sourced to order through independent distribution channels.

Is 5552725-2 RoHS compliant?

Yes, the 5552725-2 carries a ROHS3 compliance status.

What is the mating connector for 5552725-2?

This receptacle mates with a CHAMP.085 series plug — the mating half uses the same.085-inch centerline spacing and dual-row layout. The specific plug order code depends on the termination style (solder cup, IDC, or crimp) and whether a backshell is needed.
