TE Connectivity AMP Connectors 5552726-3 — Centronics Connectors

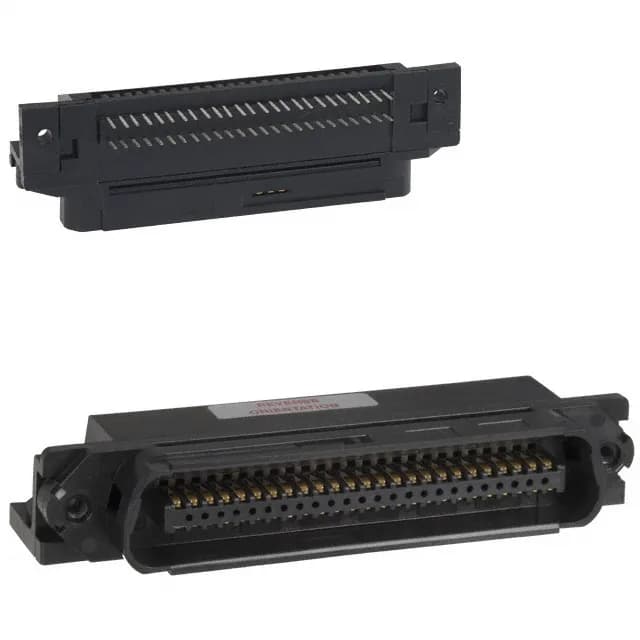

TE 5552726-3 CHAMP .085 Plug, 50 Pos R/A Solder, 30µ" Gold

MPN5552726-3
Active

TE Connectivity CHAMP.085 plug, 50 positions, 2 rows, right-angle solder, panel mount with 4-40 threaded flanges, 30.0µ" gold contacts, center strip contacts.

$13.9800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5552726-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCHAMP .085
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5552726-3 specifications
ParameterValue
SeriesCHAMP .085
MountingPanel Mount, Through Hole, Right Angle
Connector typeCenter Strip Contacts
PackageTray
TerminationSolder
Contact finishGold
Flange featureTapped, Threaded (4-40)
Rows2
Positions50
Contact finish thickness30.0µin (0.76µm)

Product details

50-Position CHAMP .085 Plug for Panel-Mount I/O

The TE Connectivity 5552726-3 is a 50-position plug from the CHAMP.085 series, using center strip contacts arranged in two rows. It terminates via solder to a PCB and mounts through a panel cutout, secured by tapped 4-40 threaded flanges on each side.

Right-Angle Solder Termination with Panel Flanges

This plug is specified for panel mount, through hole, right-angle termination. The 4-40 tapped flanges let you bolt the connector to a chassis or bulkhead before soldering the pins to the board — the hardware takes the cable strain, not the solder joints. The right-angle tail keeps the PCB parallel to the panel face, which saves depth in an enclosure.

Frequently asked questions

What is the recommended mating connector for the 5552726-3?

The 5552726-3 is a CHAMP.085 plug with center strip contacts. It mates with the matching CHAMP.085 receptacle housing — confirm the receptacle uses the same center strip contact arrangement and 50-position count. The 4-40 threaded flanges on the plug accept the mating half's jackscrews.
