64-Position Right-Angle Receptacle for Panel-Mount I/O

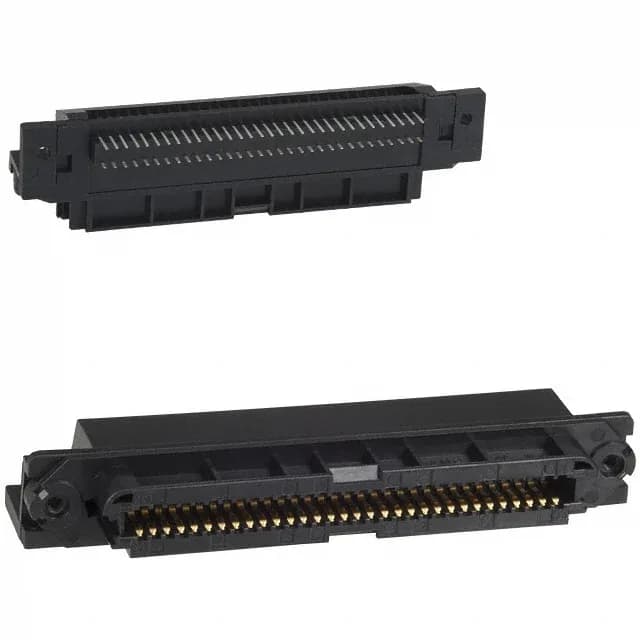

The TE Connectivity 5552744-1 is a 64-position receptacle from the CHAMP.085 series, terminated through-hole with a right-angle solder tail. It mounts to a panel via tapped 4-40 threaded flanges, which lock the connector rigidly to the chassis — not a snap-in or friction fit. This is a field-service-grade interconnect, not a one-time board-to-cable assembly.
Mating and Mounting Fit
This receptacle mates with the CHAMP.085 plug (the male half), which carries the same outer shroud interface. The 4-40 threaded flanges on both halves allow a screw-lock connection — the pair bolts together, so vibration won't unmate it. Termination is solder — the 64 through-hole pins go into a PCB, and the right-angle bend keeps the connector body flush against the board edge. The panel mount requires a cutout that matches the CHAMP.085 footprint; the threaded inserts accept standard 4-40 screws.
