TE Connectivity AMP Connectors 5554990-1 — Modular Jacks (RJ)

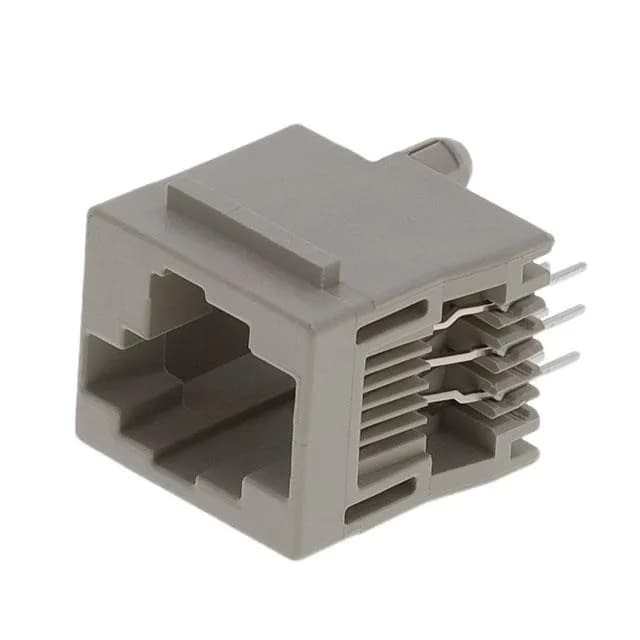

TE Connectivity 5554990-1, 6P6C RJ11 Jack, Vertical

MPN5554990-1
Active

TE Connectivity, Modular Jack, 5554990-1, 6P6C (RJ11/RJ12/RJ14/RJ25), 1 port, 1 row, vertical, through-hole, solder termination, gold 50.0µin contacts, unshielded, Cat3, tray.

$1.6800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5554990-1 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5554990-1 specifications
ParameterValue
MountingThrough Hole
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialPolybutylene Terephthalate (PBT), Polyester
PackageTray
RatingsCat3
FeaturesBoard Lock, Offset Latch, Panel Stops
ShieldingUnshielded
OrientationVertical
TerminationSolder
Tab directionUser Selectable
Contact finishGold
Rows1
Number of ports1
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)6p6c (RJ11, RJ12, RJ14, RJ25)

Product details

The TE Connectivity 5554990-1 is a 6P6C modular jack — the 6-position, 6-contact variant that covers RJ11, RJ12, RJ14, and RJ25 wiring schemes. It mounts vertically through a PCB hole and terminates by wave solder. The jack is unshielded and rated Cat3, which limits it to voice-frequency and 10BASE-T Ethernet applications; it is not designed for 100BASE-TX or gigabit data paths.

Board Lock and Mechanical Retention

The tab direction is user-selectable, so the latch orientation can be flipped to match the panel cutout or PCB layout.

No official cross-reference or second-source part is listed for this TE Connectivity modular jack.

Frequently asked questions

Where can I buy the TE Connectivity 5554990-1 modular jack?

The 5554990-1 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — stock and lead time are confirmed at quote time.

What is the difference between 6P6C and 6P4C?

6P6C has six contact positions with all six loaded, supporting RJ11 (2-wire), RJ12 (6-wire), RJ14 (4-wire), and RJ25 (6-wire) configurations. 6P4C has six positions but only four contacts loaded, which omits the outer two positions and limits compatibility to RJ11 and RJ14 only.

Is 5554990-1 RoHS compliant?

Yes, the 5554990-1 is ROHS3 Compliant.
