TE Connectivity AMP Connectors 5555140-4 — Modular Jacks (RJ)

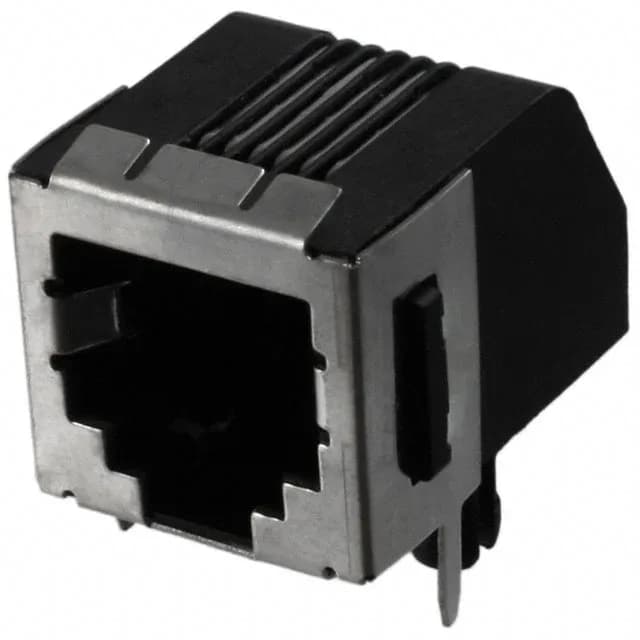

TE 5555140-4 Modular Jack 6P6C R/A Shielded, Cat3

MPN5555140-4
Active

TE Connectivity modular jack, 6P6C (RJ11/RJ12/RJ14/RJ25), right-angle, shielded with EMI finger, through-hole solder, gold 50.0µin contacts, Cat3 rated, -40°C to 85°C, tray.

$2.1400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5555140-4 specifications
ParameterValue
MountingThrough Hole
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialPolybutylene Terephthalate (PBT), Polyester
PackageTray
RatingsCat3
FeaturesBoard Lock, Panel Stops
ShieldingShielded, EMI Finger
Orientation90° Angle (Right)
TerminationSolder
Tab directionDown
Contact finishGold
Rows1
Number of ports1
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)6p6c (RJ11, RJ12, RJ14, RJ25)

Product details

Right-Angle Shielded Jack That Won't Let the Port Wobble

The TE 5555140-4 is a 6P6C modular jack — it accepts RJ11, RJ12, RJ14, and RJ25 plugs — in a right-angle, through-hole package with a shielded shell and an integrated EMI finger. Board locks and panel stops take the shear off the solder joints when the cable gets yanked, and the EMI finger bleeds chassis noise before it reaches the signal pins.

Cat3 Rating Means 10/100BASE-T — Not Gigabit

The Cat3 rating limits this jack to 10BASE-T and 100BASE-T Ethernet and analog telephony. It is not rated for Gigabit or PoE+ loads.

Shielding That Actually Grounds Through the Board

The shielded shell with EMI finger mates to the panel cutout and the PCB ground plane through the through-hole solder tails. The board lock holds the jack flat during wave solder.

Frequently asked questions

What is the datasheet for 5555140-4?

Engineers need full specs (dimensions, pinout, material) to validate fit in design.

Where can I buy 5555140-4 with in-stock availability?

Buyers need to quickly source the part to avoid supply chain delays.

What is the price of 5555140-4 in small quantities?

Design and prototype phases require budgetary pricing for cost estimation.

What is the difference between 5555140-4 and 5555140-5?

Similar part numbers indicate possible variations (e.g., LED, shielding) that affect compatibility.

Is 5555140-4 RoHS compliant?

Compliance is mandatory for many designs; buyers must verify before purchase.

What is the lead time for 5555140-4 from major distributors?

Lead time impacts production schedules; sourcing buyers need to plan.
