TE Connectivity AMP Connectors 5555167-4 — Modular Jacks (RJ)

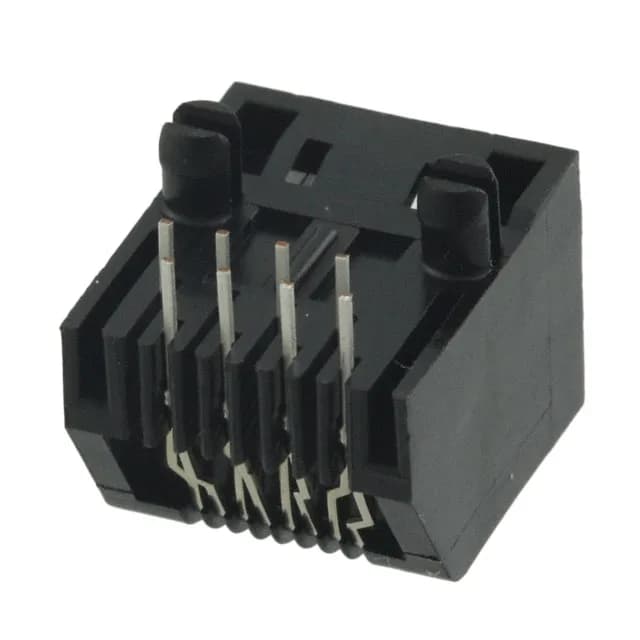

TE Connectivity 5555167-4, 8P8C RJ45 Jack, Cat3, Unshielded

MPN5555167-4
Active

TE Connectivity modular jack, 8P8C (RJ45, Ethernet), right-angle, through-hole solder, unshielded, gold 50.0µin contacts, board lock, keyed, Cat3 rated.

$2.0000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5555167-4 specifications
ParameterValue
MountingThrough Hole
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialPolybutylene Terephthalate (PBT), Polyester
PackageTube
RatingsCat3
FeaturesBoard Lock, Keyed
ShieldingUnshielded
Orientation90° Angle (Right)
TerminationSolder
Tab directionDown
Contact finishGold
Rows1
Number of ports1
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)8p8c (RJ45, Ethernet)

Product details

The TE Connectivity 5555167-4 is an 8p8c (RJ45, Ethernet) modular jack, a right-angle through-hole component designed for Cat3-rated unshielded twisted-pair applications. It sits in the 5555167 base product series and carries a board lock and keying feature for secure, polarized mating in panel-mount or PCB-edge installations. The gold-plated phosphor bronze contacts — plated to 50.0µin (1.27µm) — give it a solid mating-cycle life for field-service connections in telecom or industrial Ethernet gear that doesn't require shielding.

The tab faces down, so the latch on a standard RJ45 plug clicks into the jack from the board side.

Frequently asked questions

What is the pinout for the 5555167-4?

The 5555167-4 is an 8p8c (RJ45) jack with a single row of eight positions. The pinout follows the standard T568A or T568B wiring scheme for Ethernet — positions 1 through 8 correspond to the eight contacts in the jack, with the tab-down orientation matching the standard RJ45 plug latch.
