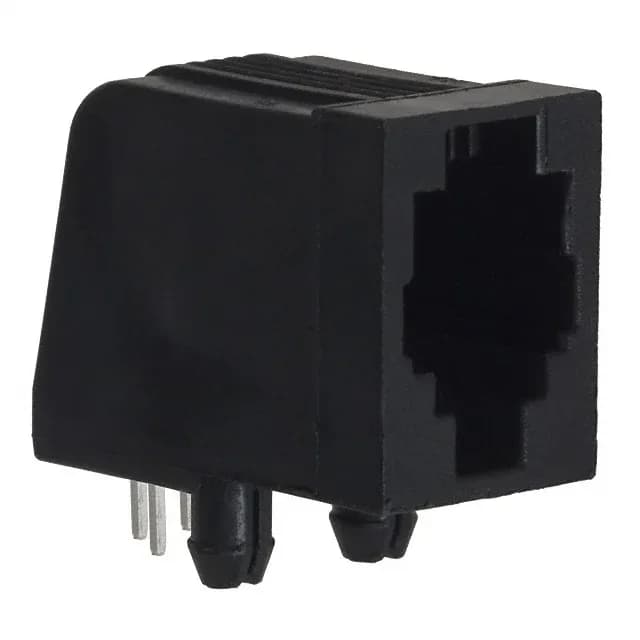

The TE Connectivity 5555980-1 is a 4P4C modular jack — the 4-position, 4-conductor variant that accepts RJ9, RJ10, and RJ22 plugs. It is the right-angle through-hole version, unshielded, with the tab facing down.
TE 5555980-1 RJ22 Jack, 4P4C R/A Unshielded, Gold
MPN5555980-1
Active
TE Connectivity modular jack, 4P4C (RJ9/RJ10/RJ22), right-angle through-hole, unshielded, gold-plated phosphor bronze contacts, board lock, -40°C to 85°C, tray.
$1.7200Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Connector type | Jack |
| Operating temperature | -40°C ~ 85°C |
| LED color | Does Not Contain LED |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT), Polyester |
| Package | Tray |
| Ratings | Cat3 |
| Features | Board Lock |
| Shielding | Unshielded |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Tab direction | Down |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 50.0µin (1.27µm) |
| Number of positions (Contacts) | 4p4c (RJ9, RJ10, RJ22) |
Product details
Frequently asked questions
Is 5555980-1 shielded or unshielded?
The 5555980-1 is unshielded. For designs requiring EMI containment, a shielded jack or external ferrite would be needed.
