TE Connectivity AMP Connectors 5557314-2 — Modular / RJ Connectors

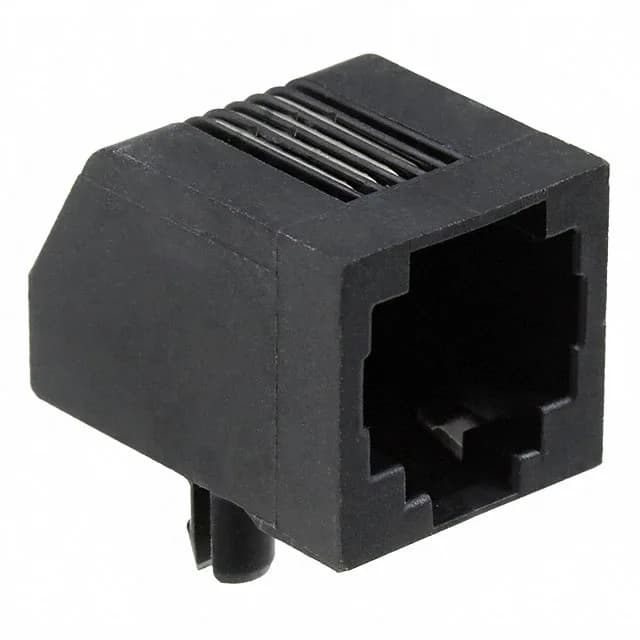

TE Connectivity 5557314-2 Modular Jack, 6p4c RJ11

MPN5557314-2
Active

TE Connectivity modular jack, 6p4c (RJ11, RJ14), right-angle SMT, gold 50.0µin contacts, board lock, Cat3, unshielded, -40°C to 85°C.

$0.9890Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5557314-2 specifications
ParameterValue
MountingSurface Mount
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialPolyamide (PA), Nylon
PackageTube
RatingsCat3
FeaturesBoard Lock
ShieldingUnshielded
Orientation90° Angle (Right)
TerminationSolder
Tab directionDown
Contact finishGold
Rows1
Number of ports1
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)6p4c (RJ11, RJ14)

Product details

The TE Connectivity 5557314-2 is a 6-position, 4-conductor (6p4c) modular jack — the footprint for RJ11 and RJ14 telephone-style plugs, not the wider 8p8c RJ45.

The 6p4c contact arrangement means this jack accepts 6-position modular plugs wired for 4 conductors — standard for single-line RJ14 or dual-line RJ11 handsets. The right-angle SMT orientation places the jack body flush against the board edge, which saves z-height inside a 1U enclosure but requires the cable exit to be parallel to the PCB.

Frequently asked questions

Is 5557314-2 compatible with standard RJ45 plugs?

No — 5557314-2 is a 6p4c (RJ11/RJ14) jack and will not accept an 8-position RJ45 plug. The keying and contact spacing are different.

Does 5557314-2 have an LED?

No — the jack does not contain an LED. It is a plain unshielded modular jack with board lock.
