TE Connectivity AMP Connectors 555764-1 — Modular / RJ Connectors

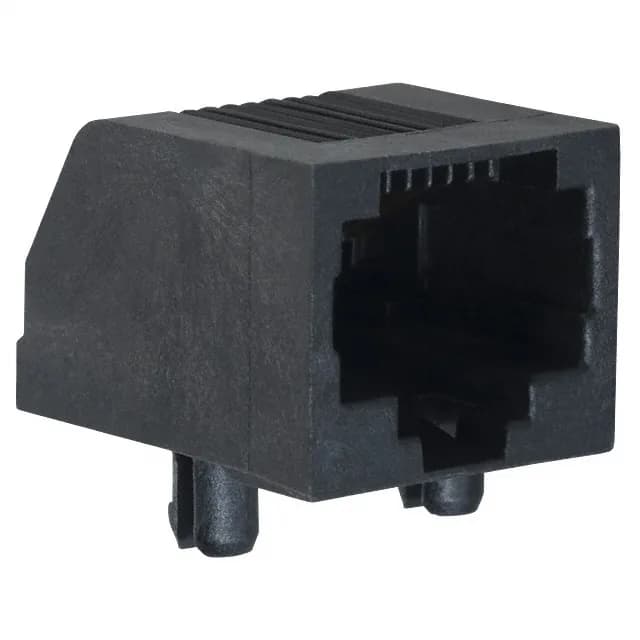

TE Connectivity 555764-1 RJ45 Jack, 8p8c, Cat3, Obsolete

MPN555764-1
Obsolete

TE Connectivity, RJ45 jack, 555764-1, 8p8c (8 position 8 contact), Cat3, right-angle SMT, gold-plated contacts, board lock, unshielded, tray.

TE Connectivity AMP Connectors 555764-1 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

555764-1 specifications
ParameterValue
MountingSurface Mount
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialPolyamide (PA), Nylon
PackageTray
RatingsCat3
FeaturesBoard Lock, Solder Retention
ShieldingUnshielded
Orientation90° Angle (Right)
TerminationSolder
Tab directionDown
Contact finishGold
Rows1
Number of ports1
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)8p8c (RJ45, Ethernet)

Product details

RJ45 Jack for Legacy 10/100BASE-T Networks

The TE Connectivity 555764-1 is an 8p8c (RJ45, Ethernet) jack — the 8-position, 8-contact modular interface standard for twisted-pair copper cabling. It is rated Cat3, which limits it to 10/100BASE-T Ethernet applications — not suitable for Gigabit or Category 5e/6 networks.

SMT Retention and Assembly Fit

The tab direction is down, meaning the latch on the mating RJ45 plug engages on the underside of the jack — confirm this matches your enclosure cutout orientation.

Obsolete — Sourcing Path

The 555764-1 is listed as Obsolete. If your design can accept a parametric alternative, a current-production Cat5e or Cat6 RJ45 jack from TE Connectivity's modular jack portfolio would be the practical route, but no direct pin-compatible drop-in is documented in this record.

Frequently asked questions

Where can I buy 555764-1 available via RFQ confirmation?

The 555764-1 is obsolete and not stocked on the shelf.

Is 555764-1 obsolete? What is the replacement for 555764-1?

Yes, the 555764-1 is obsolete. For a current-production alternative, consider a Cat5e or Cat6 rated RJ45 jack from TE Connectivity's modular jack family, but verify pin compatibility and footprint dimensions against your board layout.
