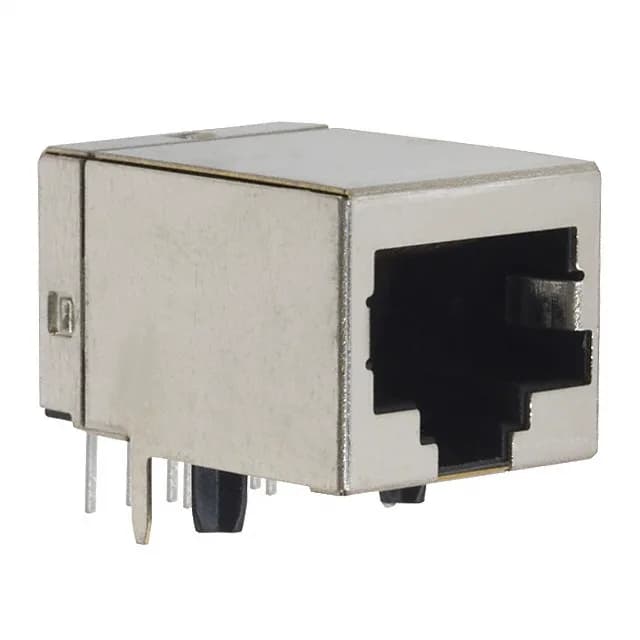

TE Connectivity 5557789-1 modular jack, 8P8C (RJ45) Ethernet, right-angle through-hole, shielded, gold 50.0µin contact plating, single port, tray packaging.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Connector type | Jack |
| Operating temperature | -40°C ~ 85°C |
| LED color | Does Not Contain LED |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon |
| Package | Tray |
| Ratings | Cat3 |
| Features | Board Guide, Shorting |
| Shielding | Shielded |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Tab direction | Down |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 50.0µin (1.27µm) |
| Number of positions (Contacts) | 8p8c (RJ45, Ethernet) |
It is the single-port member of the 5557789 series, designed for board-edge mounting where the tab points down.
Through-hole solder termination with the jack body oriented 90° (right angle) to the PCB.
The 5557789-1 is sourced through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time against your BOM quantity.
