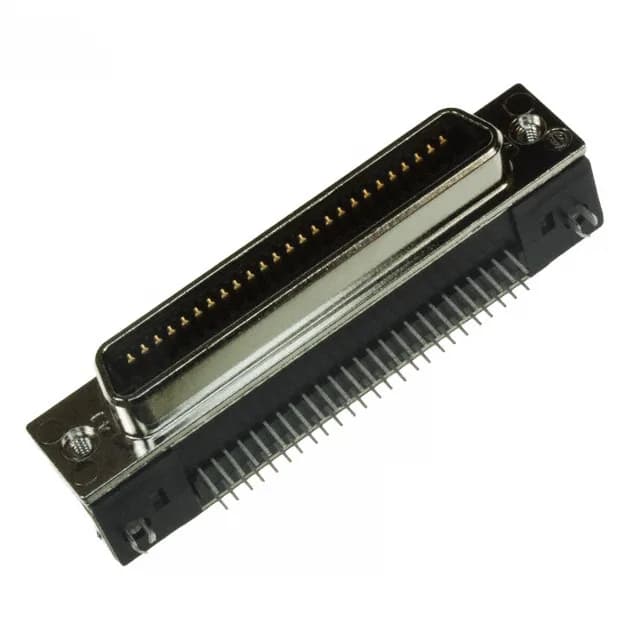

The TE Connectivity 5557932-1 is a 50-position SCSI receptacle from the CHAMP.085 series, terminated by solder to a through-hole right-angle PCB mount. The shielded shell with bail lock and board lock provides both EMI containment and mechanical retention against cable strain in a rack or enclosure.
Lifecycle and Sourcing — Obsolete, No Direct Successor
Key Features for the Fit Check
The board lock anchors the connector through wave solder, resisting the shear force from a stiff SCSI cable. The bail lock provides a positive latch to the mating plug — without it, the shielded shell can walk loose under vibration. The flange feature uses 4-40 threaded inserts on the board side for panel-mount screw retention, matching the standard SCSI I/O cutout.
