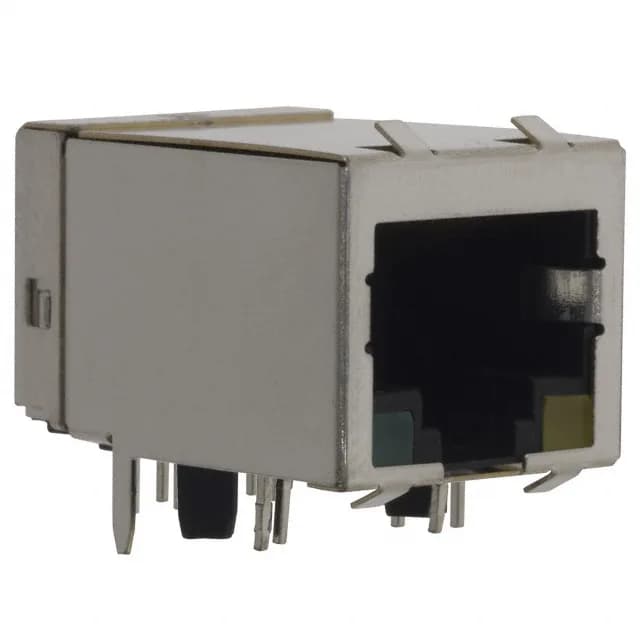

TE Connectivity 5569564-1 modular jack, 8P8C (RJ45, Ethernet), right-angle through-hole, shielded with EMI fingers, green-yellow LED, gold 50.0µin contacts, single port, 1 row, -40°C to 85°C.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Connector type | Jack |
| Operating temperature | -40°C ~ 85°C |
| LED color | Green - Yellow |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT) |
| Package | Tray |
| Ratings | Cat3 |
| Features | Board Guide |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Tab direction | Down |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 50.0µin (1.27µm) |
| Number of positions (Contacts) | 8p8c (RJ45, Ethernet) |
It carries a green-yellow bicolor LED for link/activity indication and an EMI finger shield that grounds through the panel or chassis.
The EMI finger shield is the main differentiator from a plain unshielded jack. The green-yellow LED is bicolor — one colour for link, the other for activity — driven by the PHY side, not the jack itself.
Yes, the 8P8C contact arrangement and shielded construction are compatible with Cat5e and Cat6 twisted-pair cables. The 50.0µin gold contacts maintain signal integrity for 1000BASE-T applications within the jack's rated operating temperature range.
