Right-Angle Shielded RJ45 Jack with Integrated LED

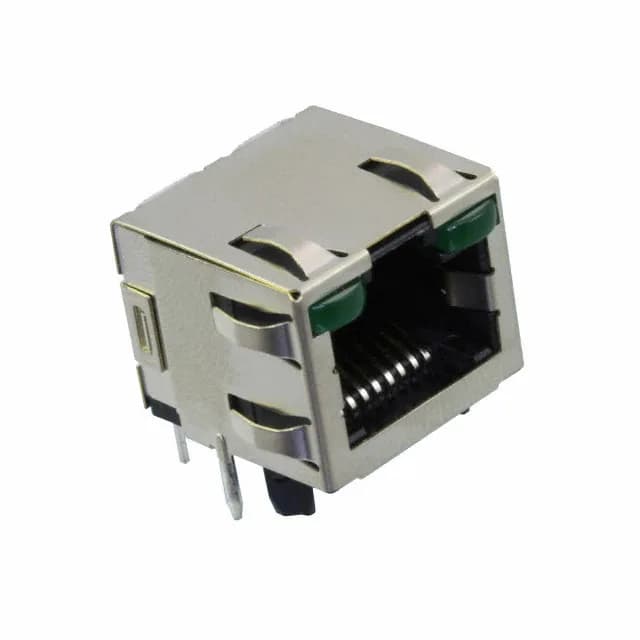

The TE Connectivity 5569564-4 is a right-angle, through-hole modular jack with an 8p8c (RJ45) contact arrangement. It is shielded with EMI fingers for radiated emissions control and includes a green LED for link-status indication.
Shielding and Signal Integrity for Ethernet
The integrated shield and EMI fingers provide a low-impedance path to chassis ground, reducing radiated emissions from the unshielded twisted-pair cable termination. This makes the jack suited for equipment requiring Cat3-rated performance in environments where conducted or radiated noise could couple into the differential pair.
