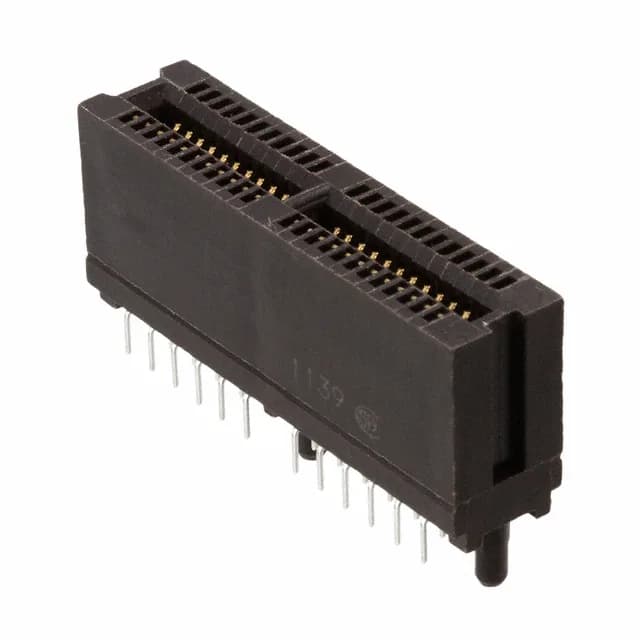

TE 5650090-7 Standard Edge .050 Edge Connector, 46 Pos

MPN 5650090-7
Active

TE Connectivity Standard Edge.050, Female Edge Connector, 46 Positions, 0.050" (1.27mm) Pitch, Dual Readout, Through Hole, Solder Staggered, Gold 30.0µin, Brown.

$3.1700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesStandard Edge .050
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5650090-7 key specifications
ParameterValue
SeriesStandard Edge .050
Card typeNon Specified - Dual Edge
MountingThrough Hole
Operating temperature-55°C ~ 85°C
ColorBrown
Contact materialPhosphor Bronze
Material - insulationThermoplastic
Pitch0.050\" (1.27mm)
GenderFemale
PackageBulk
FeaturesBoard Guide
Read outDual

All specifications

5650090-7 additional specifications
ParameterValue
TerminationSolder, Staggered
Card thickness0.062\" (1.57mm)
Contact finishGold
Rows2
Positions46
Contact finish thickness30.0µin (0.76µm)
Number of positions (Bay, row)11; 12

Product details

The 0.050" (1.27 mm) pitch and dual-readout contacts give it a compact footprint for dense routing on the motherboard, while the staggered solder tails break out to the through-hole vias without shorting adjacent traces.

The 46 positions are arranged in two rows with a dual readout — the connector reads both edges of the card. The brown thermoplastic insulator includes an integrated board guide that aligns the card during insertion.

Through-hole mounting with staggered solder tails — the offset rows let the PCB designer route traces between the via pads on inner layers, which is necessary at the 0.050" pitch. The board guide on the connector body also serves as a locating feature for pick-and-place alignment during hand or wave-solder assembly.
