TE Connectivity AMP Connectors 5650719-1 — Card-Edge Connectors

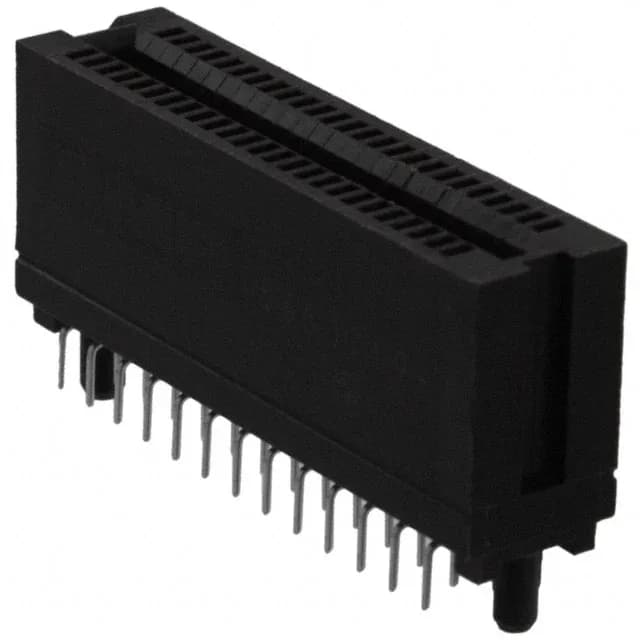

TE Connectivity 5650719-1 Standard Edge II, 50 Pos

MPN5650719-1
Active

TE Connectivity Standard Edge II, Dual Female Edge Connector, 50 Positions, 0.100" (2.54mm) Pitch, 2 Rows, Through Hole, Solder Staggered Termination, Gold 30.0µin Contacts, 0.062" (1.57mm) Card Thickness.

$4.0000Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesStandard Edge II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5650719-1 key specifications
ParameterValue
SeriesStandard Edge II
Card typeNon Specified - Dual Edge
MountingThrough Hole
Operating temperature-55°C ~ 85°C
ColorBrown
Contact materialPhosphor Bronze
Material - insulationPolyester, Glass Filled
Pitch0.100\" (2.54mm)
GenderFemale
PackageBulk
FeaturesBoard Guide
Read outDual

All specifications

5650719-1 additional specifications
ParameterValue
TerminationSolder, Staggered
Card thickness0.062\" (1.57mm)
Contact finishGold
Rows2
Positions50
Contact finish thickness30.0µin (0.76µm)
Number of positions (Bay, row)25

Product details

The TE Connectivity 5650719-1 is a 50-position dual female card-edge connector from the Standard Edge II series. The brown polyester housing carries a board guide to align the card during insertion, reducing the risk of contact stubbing.

The 50 positions and 0.100" pitch match the most common edge-card footprint — if your PCB has 50 gold fingers on 0.100" centers, this connector fits without a board respin. The 0.062" card thickness is the standard 1/16" PCB; a thicker or thinner board will not seat properly in the slot. The staggered solder tails break out the rows for easier through-hole soldering and inspection.

Frequently asked questions

Is 5650719-1 RoHS compliant?

Yes, the 5650719-1 is ROHS3 Compliant per the manufacturer's listing.

What card thickness does 5650719-1 accept?

The connector is designed for a card thickness of 0.062" (1.57 mm).

Does 5650719-1 have a board guide?

Yes, the connector includes a board guide feature to help align the edge card during insertion.
