48-Position Right-Angle DIN 41612 Receptacle for Eurocard Backplanes

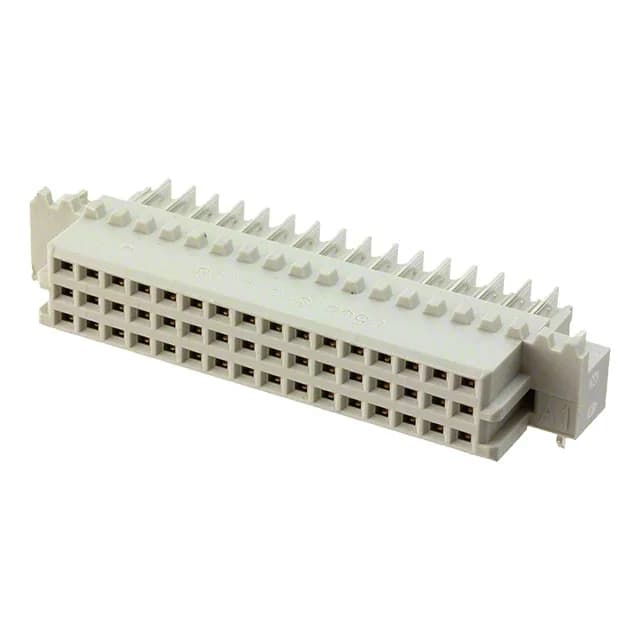

The TE Connectivity 5650893-5 is a 48-position, 3-row receptacle from the Eurocard series, conforming to the DIN 41612 form factor. It mates with standard Eurocard male headers in a backplane-daughtercard configuration. Board locks on the mounting flanges provide additional shear-force retention during soldering and vibration.
Style R/2 and Level 2 Classification
This receptacle is designated Style R/2 (1/2 R), meaning it carries contacts in rows a and c of the three-row DIN 41612 grid, with row b left unpopulated. The Level, Class 2 rating indicates standard performance per DIN 41612 — suitable for general-purpose signal and low-current power distribution within a backplane. All 48 positions are loaded, so no depopulation is present.
Through-Hole Termination and Board Lock Retention
Termination is solder-only, through-hole, with right-angle tails that align to the standard 0.100" grid. The bulk packaging means parts ship loose in a bag, suitable for hand-loading or selective soldering lines.
