TE Connectivity AMP Connectors 5650963-4

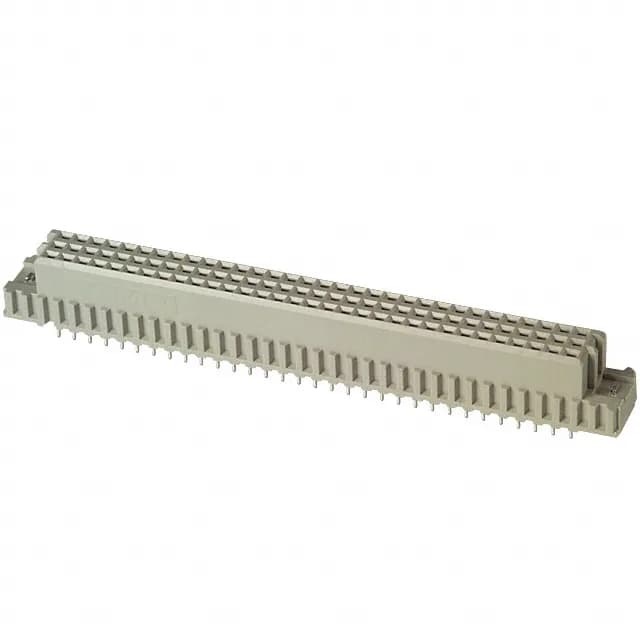

TE Connectivity 5650963-4 Eurocard DIN 41612 Receptacle

MPN 5650963-4
Active

TE Connectivity Eurocard DIN 41612 receptacle, 96 positions, 3 rows, 0.100" (2.54mm) pitch, through-hole solder termination, gold contact finish, board locks, UL94 V-0.

$7.3800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesEurocard
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5650963-4 specifications
ParameterValue
SeriesEurocard
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Operating temperature-55°C ~ 125°C
Material - insulationPolymer Thermoplastic, Glass Filled
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)
StyleC
PackageBulk
FeaturesBoard Lock
TerminationSolder
Level, class2
Contact finishGold
Rows3
Positions96

Product details

What This 96-Position DIN Receptacle Is

The 5650963-4: It's a Style C connector, meaning all three rows are fully populated — no missing positions to track on the BOM. The contacts are female sockets with a gold finish, which handles the repeated mating cycles a card-edge or backplane connector sees over the life of the chassis.

The mating half is a DIN 41612 male header (Style C, 96 positions) that plugs into this receptacle. The board locks are worth noting: they're not just a retention gimmick. On a through-hole connector this size, the solder joints alone take the mechanical load from the mating force and any cable strain. The board locks share that load and reduce the risk of lifted pads or cracked solder fillets over thermal cycling.
