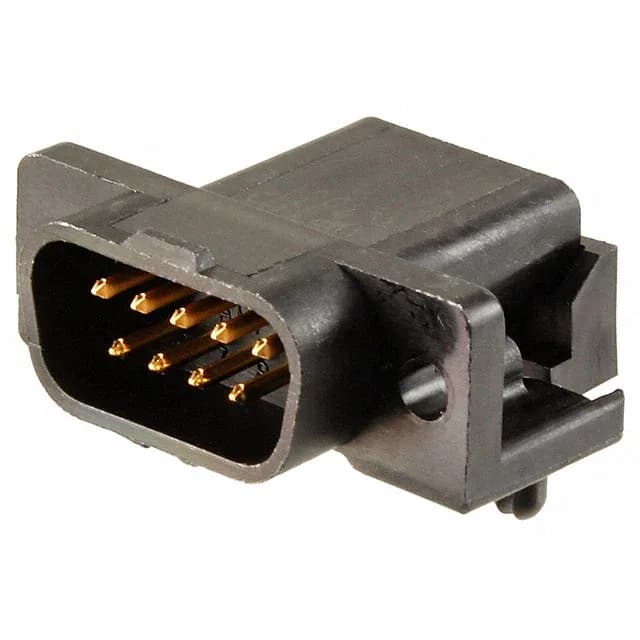

TE Connectivity AMPLIMITE HDJ-20 D-Sub plug, 9 positions, 2 rows, right-angle through-hole solder, board lock, black UL94 V-2 housing, shell size DE-9.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HDJ-20 |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Shell size, connector layout | 1 (DE, E) |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Package | Tube |
| Features | Board Lock |
| Termination | Solder |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Backset spacing | 0.590\" (14.99mm) |
| Positions | 9 |
The shell layout is 1 (DE, E) — the standard DE-9 footprint that mates with any matching 9-position D-Sub receptacle.
The unthreaded housing/shell flange means the connector relies on the board lock and solder joints for retention rather than jackscrews.
The 5745001-2 uses a standard DE-9 shell layout (connector layout 1), so it mates with standard 9-position D-Sub backshells designed for that footprint. The unthreaded flange means a backshell that grips the shell body or uses snap-on retention is appropriate.
