TE Connectivity AMP Connectors 5745057-3 — D-Sub Cable Assemblies

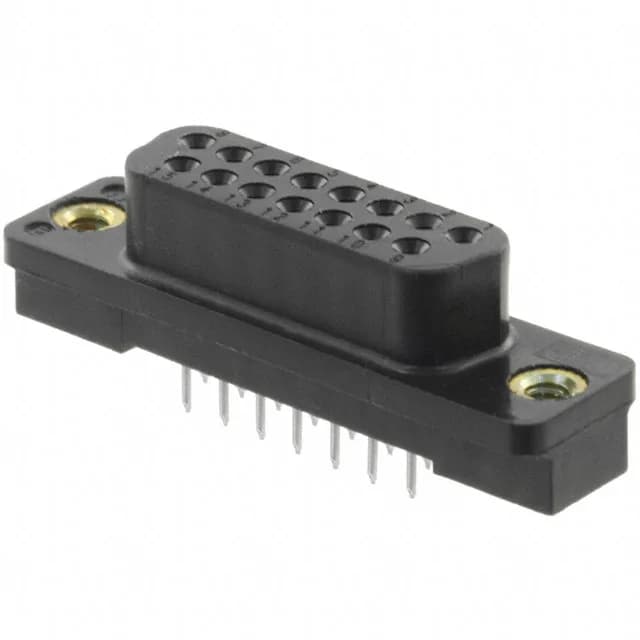

TE 5745057-3 AMPLIMITE HD-20 D-Sub Receptacle, 15 Pos, 6A

MPN5745057-3
Active

TE Connectivity AMPLIMITE HD-20 D-sub receptacle, 5745057-3, 15 positions, 2 rows, 6A, 125V, through-hole solder, gold flash contacts, 4-40 threaded flange, black polyester UL94 V-0 housing.

$13.2500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5745057-3 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5745057-3 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Material flammability ratingUL94 V-0

All specifications

5745057-3 additional specifications
ParameterValue
PackageTube
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions15
Contact finish thicknessFlash

Product details

D-Sub Receptacle for Panel and Board Mount

The 4-40 threaded flange lets you bolt the receptacle to a panel or bracket for vibration-resistant mounting — the screw-down interface keeps the mated pair from working loose in a cabinet with fans or relays.

Mating and Termination Check

This is a receptacle (female sockets) — it mates with any standard DA-15 (DE-15) D-sub plug having the same shell size and 4-40 threaded insert spacing. The through-hole solder tails are intended for PCB mounting; the 0.318-inch row spacing and 0.090-inch contact spacing match the standard D-sub footprint used across the AMPLIMITE HD-20 family. The gold flash provides corrosion protection for the contact interface but does not support the hundreds of mating cycles that thicker gold would. For a connector that stays mated on a backplane or inside an enclosure, flash is adequate; for a cable that gets disconnected weekly, budget for contact wear.

Frequently asked questions

What is the pinout for 5745057-3?

The pinout follows the standard DA-15 (DE-15) D-sub assignment: 15 contacts in two rows, with the shell layout designated as 2 (DA, A) per the connector shell size specification. The exact signal-to-pin mapping depends on your application — the connector itself does not impose a fixed pinout beyond the physical contact numbering.
