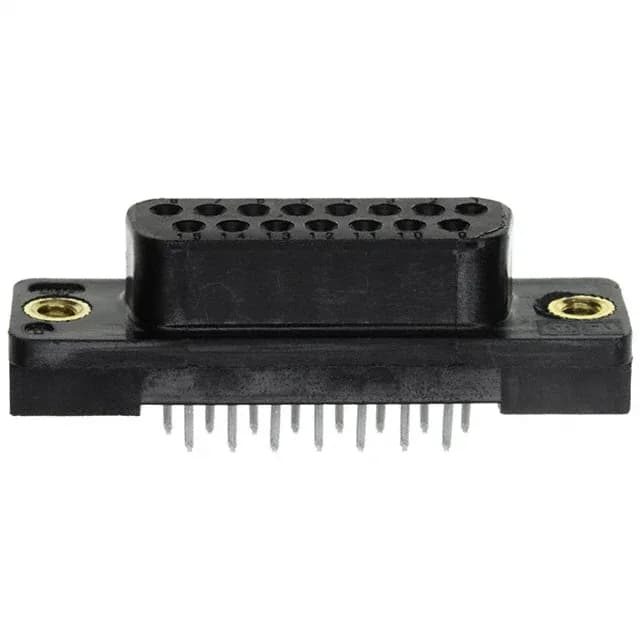

It carries female socket contacts arranged in two rows, rated 6A per contact at 125V. The through-hole solder termination and vertical orientation make it a direct board-mount part for parallel-to-PCB mating with a male plug. Black polyester shell, UL94 V-0 rated.
Shell size and standard D-Sub compatibility
The shell size DA (A) is the industry-standard footprint for a 15-position D-Sub. That means the 5745057-4 mates with any standard 15-pin D-Sub male plug, and accepts standard D-Sub backshells designed for the DA shell. The flange feature with 4-40 threaded inserts accepts the standard jackscrew locking.
