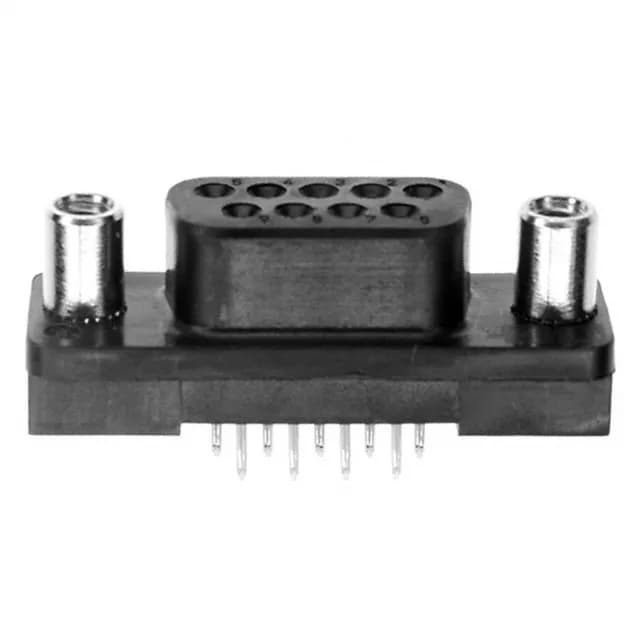

TE 5745076-3 AMPLIMITE HD-20 D-Sub Receptacle, 9-Pos, 6A

MPN5745076-3
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5745076-3, 9 positions, 2 rows, 6A, 125V, through-hole solder, gold flash contacts, female screwlock 4-40.

$6.1400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5745076-3 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5745076-3 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Material flammability ratingUL94 V-0

All specifications

5745076-3 additional specifications
ParameterValue
PackageTube
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Positions9
Contact finish thicknessFlash

Product details

9-Position D-Sub Receptacle from the AMPLIMITE HD-20 Series

What the 6 A and Gold Flash Mean for Your Board

At 6 A per contact, this connector handles signal-level power and moderate I/O loads — think RS-232, RS-485, or low-current sensor interfaces. The 125 V rating covers most industrial and telecom backplane voltages without derating.

Mates with any standard E-size D-Sub plug with male pins and matching 4-40 screwlocks. The through-hole solder termination is straightforward for wave-solder assembly.

No official second-source cross-reference is on record. Confirm the screwlock thread and footprint match before substituting.
