TE Connectivity AMP Connectors 5745078-5 — D-Sub Cable Assemblies

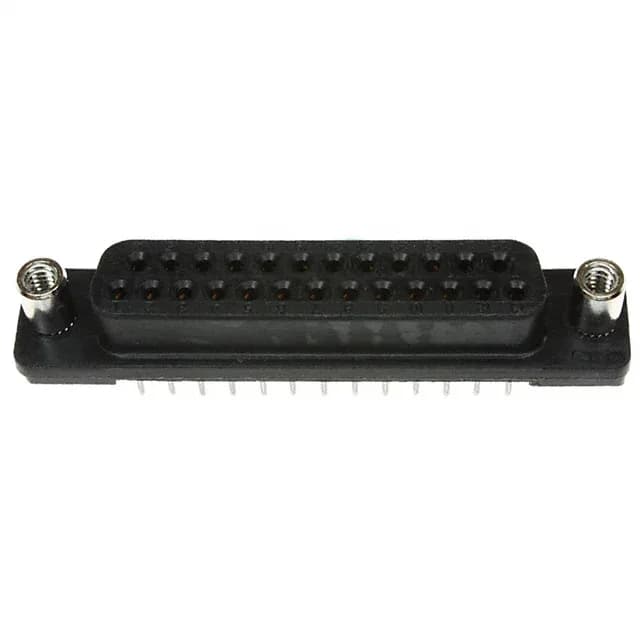

TE 5745078-5 AMPLIMITE HD-20 D-Sub Receptacle, 25 Position

MPN5745078-5
Active

TE Connectivity AMPLIMITE HD-20 D-sub receptacle, 5745078-5, 25 positions, 2 rows, 6A, 125V, through-hole solder, gold flash contacts, female screwlocks (4-40) included.

$13.7400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5745078-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5745078-5 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Material flammability ratingUL94 V-0

All specifications

5745078-5 additional specifications
ParameterValue
PackageTube
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Positions25
Contact finish thicknessFlash

Product details

What This 5745078-5 D-Sub Receptacle Is

Shell size layout 3 (DB, B) with through-hole solder termination for vertical PCB mounting.

Screwlocks and Mating

Yes, the 5745078-5 includes female screwlocks (4-40) on the mating side — these are factory-installed, not an add-on. The mating connector is a standard DB-25 male plug (solder cup or right-angle PCB mount) with the corresponding male screwlock hardware (4-40 threaded insert). The screwlocks provide vibration-resistant retention once tightened, which is the standard practice for D-sub interconnects in field-serviceable equipment.

What the 6A and 125V Ratings Mean

Rated 6A per contact at 125V. The gold flash contact finish supports occasional reconnection.

Frequently asked questions

Where can I buy 5745078-5?

Submit a request for quote to confirm current availability and pricing for your required quantity.

Does 5745078-5 have screwlocks included?

Yes, the 5745078-5 includes female screwlocks (4-40) on the mating side, factory-installed. The mating male plug requires the corresponding male screwlock hardware.
