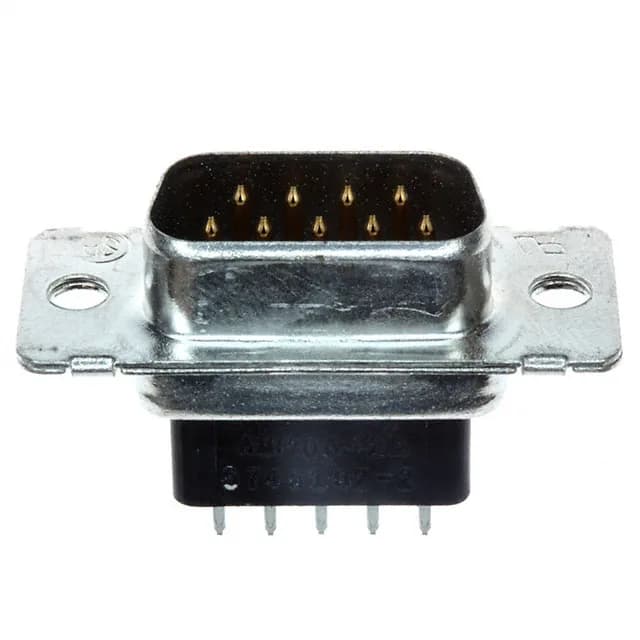

TE Connectivity AMPLIMITE HDP-20 D-Sub plug, 9 positions, 2 rows, male pins, solder termination, through hole, vertical mount, gold flash contacts, 6A, 125V, steel shell tin plated, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HDP-20 |
| Type | Signal |
| Mounting | Through Hole |
| Connector type | Plug, Male Pins |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polyamide (PA), Nylon, Glass Filled |
| Shell material, finish | Steel, Tin Plated |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | Flash |
Each contact is rated 6 A at a working voltage of 125 V — typical for signal-level circuits in serial data, instrumentation, or control interfaces.
This plug mounts vertically through a PCB with solder-cup termination. The unthreaded housing shell accepts standard DB9 backshells.
Yes, the 5745182-2 is ROHS3 compliant per the manufacturer's listing.
This 9-position D-Sub plug mates with any standard 9-position D-Sub receptacle or female connector that follows the DE-9 shell layout.
