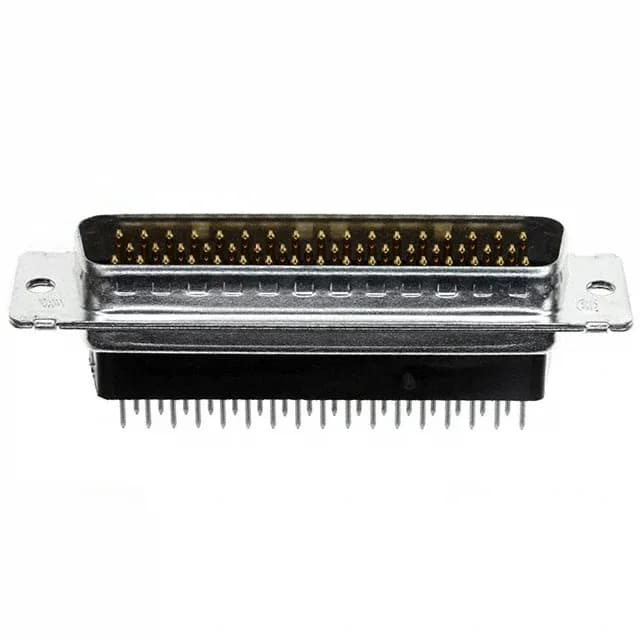

TE Connectivity AMPLIMITE HDP-20 D-Sub plug, 50 positions, 3 rows, 6 A, 125 V, gold-plated brass contacts, through-hole solder termination, shell size 5 (DD).
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HDP-20 |
| Type | Signal |
| Mounting | Through Hole |
| Connector type | Plug, Male Pins |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 5 (DD, D) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Thermoplastic |
| Shell material, finish | Steel, Tin Plated |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 3 |
| Positions | 50 |
The TE Connectivity AMPLIMITE HDP-20 5745414-7 is a 50-position D-sub plug with male pins arranged in three rows. This is the standard-density layout for shell size 5 (DD), meaning the footprint matches the common DD PCB pattern — no routing surprises when you drop it into a legacy board layout.
For a shielded cable assembly, that means the EMI bond happens at the shell interface, not through the pin field.
