TE Connectivity AMP Connectors 5745647-1

5745647-1 TE AMPLIMITE HDE-20 D-Sub Jackscrew, 4-40 Thread

MPN 5745647-1
Active

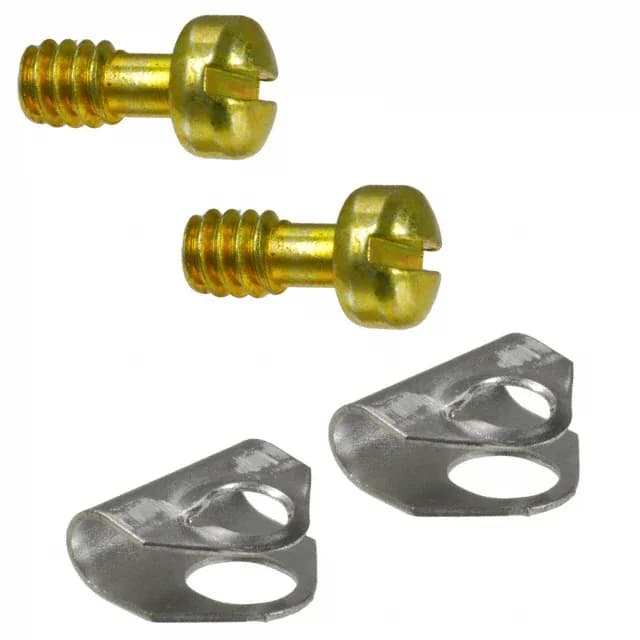

TE Connectivity AMPLIMITE HDE-20 D-Sub jackscrew, slotted, 4-40 thread, includes clip, bulk pack.

$2.1700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesAMPLIMITE HDE-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5745647-1 specifications
ParameterValue
SeriesAMPLIMITE HDE-20
Accessory typeJackscrew, Slotted
PackageBulk
FeaturesClip
Connector size4-40
Length - below head0.220\" (5.59mm)
For use with (Related products)AMPLIMITE Series HDE, HDP

Product details

D-Sub Hardware: Jackscrew & Clip Assembly

The TE Connectivity 5745647-1 is a slotted jackscrew for AMPLIMITE HDE and HDP series D-sub connectors. It carries a 4-40 thread — the standard UNC size for D-sub hardware — and includes an integral clip that retains the screw in the connector shell so it doesn't fall out during handling or mating. This is the male-side jackscrew, used on the plug half to engage the mating female screwlock or standoff on the receptacle.

Rated for use with AMPLIMITE HDE and HDP series D-sub connectors. The 4-40 thread mates with standard D-sub screwlocks, standoffs, and hex nuts. The 0.220-inch length below the head is the thread engagement depth — enough to reach through the shell and engage the mating hardware on standard-density D-subs without bottoming out.

MPN
5745647-1
