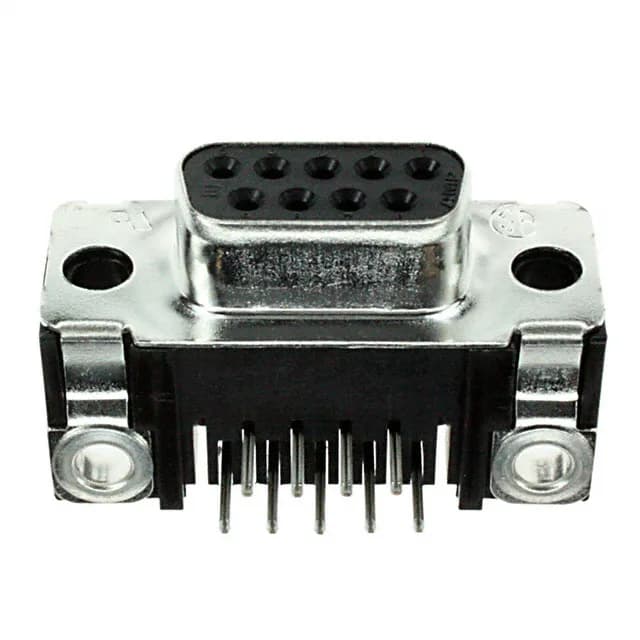

9-Position Right-Angle D-Sub, Gold Contacts, Ground Strap Included
It carries the standard DE-9 shell layout (1, DE, E), so it mates with any DE-9 plug — the footprint and panel cutout are the same as every other DE-9 D-sub going back decades. The housing/shell flange is unthreaded, so the mating plug's screw-locks pass through without captive hardware on this side.
Board-Layout Fit: Right-Angle Mount and Backset Spacing
The through-hole solder tails are on 0.108" (2.74 mm) row spacing, standard for DE-9. The board footprint is the same as any other right-angle DE-9 receptacle; the ground strap adds two extra solder tabs that tie the shell to the ground plane.
