TE Connectivity 5745781-6 AMPLIMITE HD-20 D-Sub Receptacle

MPN 5745781-6
Active

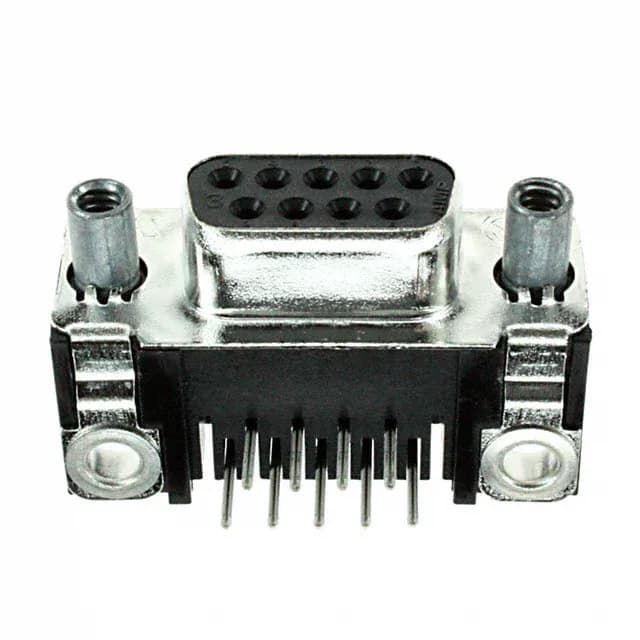

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5745781-6, DE-9 shell, 9 positions, 2 rows, right-angle through-hole solder, gold 30.0µin contacts, 6A, 125V, female screwlock 4-40.

$6.1700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5745781-6 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated

All specifications

5745781-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTray
FeaturesGround Strap
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions9
Contact finish thickness30.0µin (0.76µm)

Product details

Shell Size, Gender, and Termination — the DE-9 Right-Angle Receptacle

The TE Connectivity 5745781-6 is a 9-position D-Sub receptacle from the AMPLIMITE HD-20 series, housed in a DE-9 shell (shell size 1, layout DE, E).

The thermoplastic dielectric (UL94 V-0 rated) and the steel shell with tin plating handle the thermal load, but for sustained high-current duty on multiple pins, derating per the manufacturer's curve is advised.

Mounting and Hardware — the Female Screwlock (4-40)

The flange feature is a mating-side female screwlock with 4-40 thread — this is the receptacle side that accepts a male jack-screw from the plug half. The screwlock provides positive mechanical retention, critical in vibration environments like industrial machinery or test equipment where a loose D-sub can cause intermittent contact. The shell material is steel with tin plating, giving good EMI shielding and corrosion resistance for indoor use.
