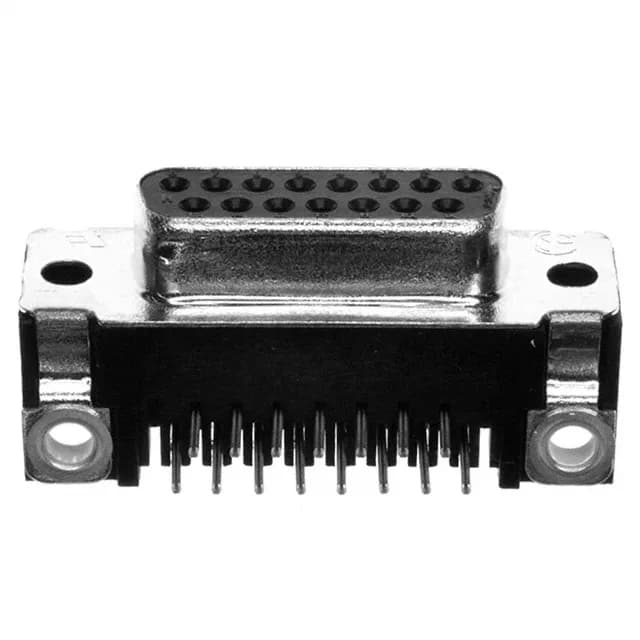

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5745782-2, 15 positions, 2 rows, right-angle through-hole, solder termination, gold-plated contacts, 6 A, 125 V, steel shell with ground strap.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 2 (DA, A) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Thermoplastic |
| Shell material, finish | Steel, Tin Plated |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Ground Strap |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Backset spacing | 0.318\" (8.08mm) |
| Positions | 15 |
| Contact finish thickness | 30.0µin (0.76µm) |
The limiting factor is not the contact itself but the pin density across the board edge.
The right-angle orientation places the solder tails perpendicular to the PCB, suiting board-edge or space-constrained enclosures where a straight plug would protrude too far. Solder termination is manual or wave-solder; no press-fit or IDC tooling required.
