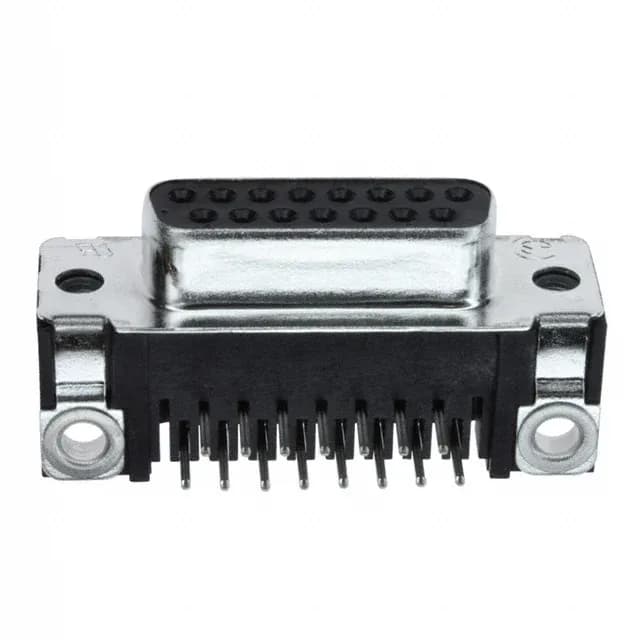

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5745782-4, 15 positions, 2 rows, 6A, 125V, through-hole right-angle solder, gold 30.0µin contacts, steel shell.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 2 (DA, A) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Phosphor Bronze |
| Dielectric material | Thermoplastic |
| Shell material, finish | Steel, Tin Plated |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Ground Strap |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Backset spacing | 0.318\" (8.08mm) |
| Positions | 15 |
| Contact finish thickness | 30.0µin (0.76µm) |
The flange feature uses 4-40 threaded inserts (housing/shell type), matching the standard D-sub jack-screw pattern for secure panel mounting. A ground strap is included as a standard feature — it provides a low-impedance path from the shell to the PCB ground plane, which helps contain radiated emissions in a metal enclosure. The connector mates with any standard 2 (DA, A) shell-size D-sub plug.
Yes, the 5745782-4 is RoHS compliant.
