15-Position D-Sub Receptacle, Right-Angle Solder

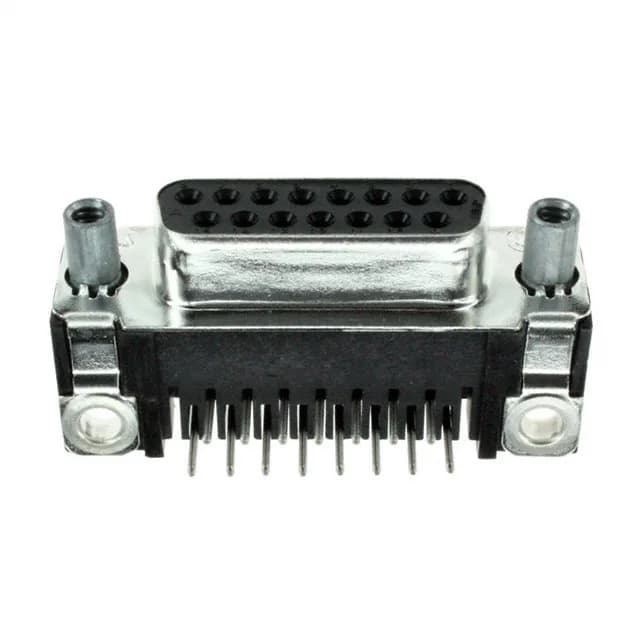

The TE Connectivity AMPLIMITE HD-20 5745782-6 is a 15-position D-Sub receptacle with female sockets, arranged in two rows. It terminates via through-hole, right-angle solder tails — the 0.318" (8.08mm) backset spacing positions the connector face for standard board-edge clearance. The shell uses a steel, tin-plated body with a mating-side female screwlock (4-40) flange to secure the mating plug against vibration. This is an active-production part, RoHS compliant.
What the 6A and 125V Ratings Mean for Fit
The 125V voltage rating covers typical signal and low-power DC rail applications within the shell size 2 (DA, A) layout.
Mating Connector and Pinout
This receptacle mates with a standard 15-position D-Sub plug (male pin) having the same shell size 2 (DA, A) layout. The female screwlock (4-40) on the receptacle side accepts the mating plug's male screwlock or hex standoff. The pinout follows the industry-standard DA-15 assignment — positions are numbered sequentially across two rows, with row 1 carrying pins 1-8 and row 2 carrying pins 9-15. Confirm the specific wiring assignment against your harness drawing before assembly.
