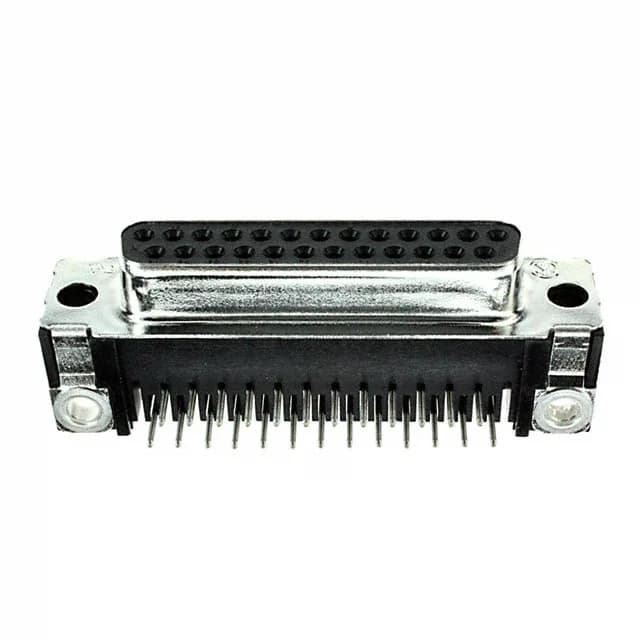

TE 5745783-2 AMPLIMITE HD-20 D-Sub Receptacle, 25 Pos, R/A

MPN5745783-2
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5745783-2, 25 positions, 2 rows, right-angle solder, gold-plated contacts, 6A, 125V, steel shell.

$9.2400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5745783-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5745783-2 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated

All specifications

5745783-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTray
FeaturesGround Strap
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Backset spacing0.318\" (8.08mm)
Positions25
Contact finish thickness30.0µin (0.76µm)

Product details

D-Sub Receptacle for Board-Edge Signal I/O

It carries female sockets with 30.0 µin gold-over-phosphor bronze contacts, rated for 6 A per circuit at 125 V. The steel shell with tin plating provides EMI shielding and mechanical rigidity, while the unthreaded flange accepts standard screw-lock hardware for panel or bracket mounting. The 0.318" backset spacing positions the connector face clear of the board edge, a detail that matters when fitting into a tight enclosure or aligning with a mating plug's jackscrews.

Ground Strap and Contact Finish

This receptacle mates with any male plug that has the same shell size 3 (DB, B) layout. The unthreaded flange means you supply your own screw-lock hardware.

Frequently asked questions

What is the mating connector for 5745783-2?

The 5745783-2 mates with any standard DB-25 male plug (solder cup or IDC) that has the same shell size 3 (DB, B) layout. The mating half must have male pins and a compatible flange for screw-lock hardware.

Is 5745783-2 RoHS compliant?

Yes, the 5745783-2 is ROHS3 compliant.

Does 5745783-2 have a grounding strap?

Yes, the 5745783-2 includes a ground strap feature that connects the shell to a PCB ground plane for EMI control.
