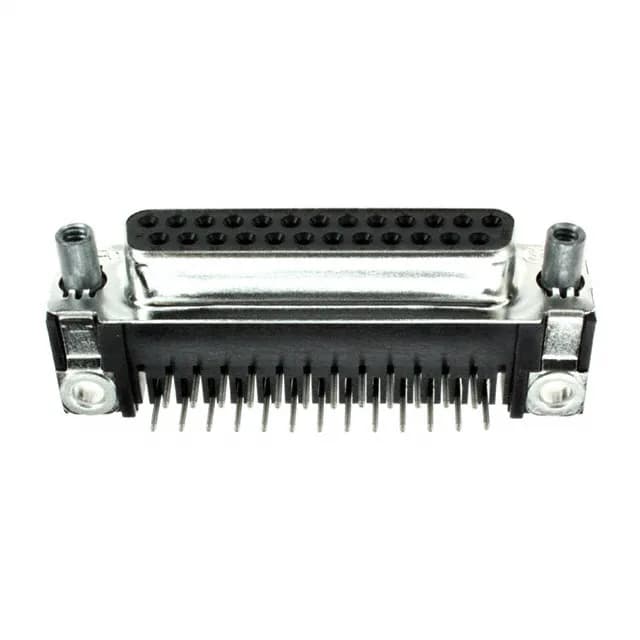

TE Connectivity 5745783-6 AMPLIMITE HD-20 D-Sub Receptacle

MPN5745783-6
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 5745783-6, 25 positions, 2 rows, right-angle through-hole, solder termination, gold-plated contacts, 6A, 125V, steel shell with tin plating.

$8.3300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5745783-6 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5745783-6 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole, Right Angle
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated

All specifications

5745783-6 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTray
FeaturesGround Strap
TerminationSolder
Contact finishGold
Flange featureMating Side, Female Screwlock (4-40)
Rows2
Backset spacing0.318\" (8.08mm)
Positions25
Contact finish thickness30.0µin (0.76µm)

Product details

Board-edge D-Sub for 25-Position I/O

The TE Connectivity 5745783-6 is a 25-position D-Sub receptacle from the AMPLIMITE HD-20 series, configured as a right-angle through-hole mount with solder termination. This is the standard DB-25 density layout (shell size 3, DB, B), meaning it mates with any standard DB-25 plug.

Mounting and Retention Details

The female screwlock (4-40) on the mating side accepts a standard male screwlock from the plug side, providing mechanical retention in vibration environments. An integrated ground strap connects the steel shell to the PCB ground plane, which helps bleed shield current and meet EMI requirements in shielded cable assemblies. The shell is steel with tin plating, offering adequate corrosion resistance for indoor industrial and commercial environments.

Frequently asked questions

Where can I buy the 5745783-6 and how is it quoted?

Submit an RFQ for your BOM quantity to get a firm price and lead time.

What is the mating connector for the 5745783-6?

The 5745783-6 is a D-Sub receptacle (female sockets) that mates with any standard DB-25 male plug from the AMPLIMITE HD-20 series. The female screwlock (4-40) on the receptacle side accepts a male screwlock from the plug for mechanical retention.
