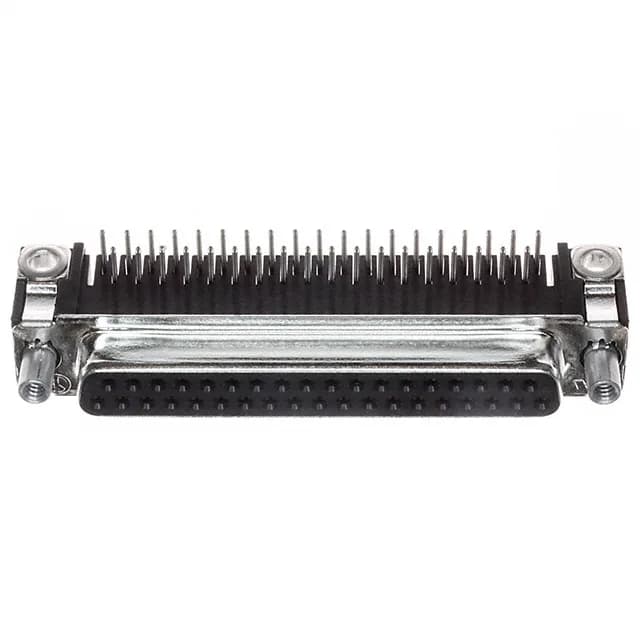

37-Position Right-Angle D-Sub Receptacle for Board-Edge I/O
This is the standard shell size 4 (DC, C) layout, meaning it mates with the matching 37-position D-sub plug and fits the familiar DA-37 panel cutout. The steel shell is tin-plated for EMI shielding, and a ground strap is included for chassis bonding.
Right-Angle Mounting and Board Fit
Solder termination is standard for through-hole assembly. The two-row layout (37 positions total) matches the standard D-sub footprint.
Environmental and Compliance Ratings
The connector is RoHS compliant (lead-free construction). The steel shell with tin plating provides basic corrosion resistance and EMI shielding when mated.
Mating and Field Replacement
The flange features female screwlocks (4-40 thread) on the mating side, which accept jack screws from the plug side for vibration-resistant retention. The ground strap provides a low-impedance path to chassis ground, improving EMI performance in the mated assembly.
