TE Connectivity AMP Connectors 5745854-3 — D-Sub Backshells & Hoods

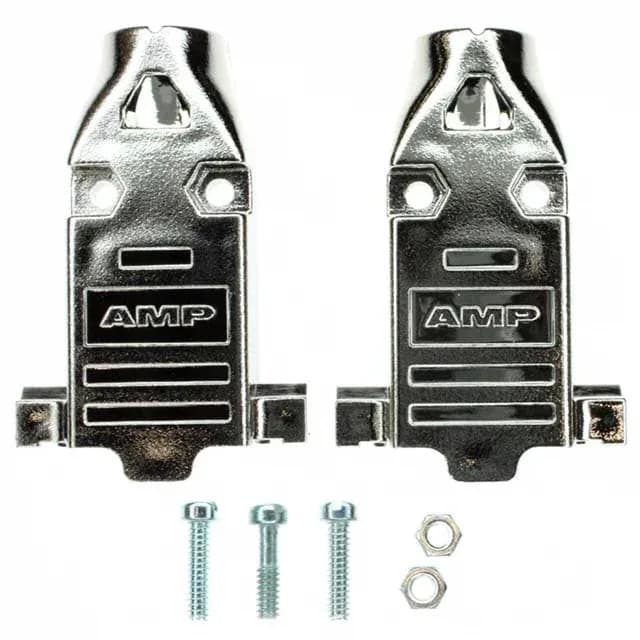

TE AMPLIMITE 5745854-3, 9-Pos D-Sub Backshell, Shielded

MPN5745854-3
Active

TE Connectivity AMPLIMITE series, 5745854-3, 9-position, two-piece backshell, shielded, nickel over copper plating, 180° cable exit, includes 4-40 mating screws, bulk pack.

$8.6600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5745854-3 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPLIMITE
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5745854-3 specifications
ParameterValue
SeriesAMPLIMITE
Cable typeRound
Accessory typeTwo Piece Backshell
Cable exit180°
ColorSilver
MaterialThermoplastic
Primary materialPlastic
PackageBulk
PlatingNickel over Copper
FeaturesMating Screws 4-40
HardwareAssembly Hardware
ShieldingShielded
Positions9
Compatible D-Sub size9pos and HD15pos
Compatible shell sizeE

Product details

The TE Connectivity AMPLIMITE 5745854-3 is a two-piece backshell for D-subminiature connectors, designed to fit standard 9-position and high-density 15-position shell sizes (E shell). It provides a shielded enclosure around the cable-to-connector termination point, with nickel-over-copper plating on the thermoplastic body to attenuate EMI. The 180° straight cable exit accepts round cable, and the assembly includes 4-40 mating screws — no separate hardware procurement needed.

This backshell mates with any standard 9-position D-sub connector and also fits high-density 15-position D-subs that share the E shell size. The 4-40 threaded screws are pre-installed in the assembly hardware.

Frequently asked questions

Is the 5745854-3 compatible with a standard 9-pin D-sub connector?

Yes, the 5745854-3 backshell fits standard 9-position D-sub connectors (DB-9) and also high-density 15-position D-subs that share the E shell size.

Does the 5745854-3 include the 4-40 mating screws?

Yes, the 4-40 mating screws are included as part of the assembly hardware — no separate jack-screw order needed.

What is the difference between 5745854-3 and 5745854-5?

Both are 9-position shielded backshells with identical plating, cable exit, and shell compatibility. The 5745854-5 adds a strain relief feature to the assembly hardware; the 5745854-3 does not include that strain relief.
