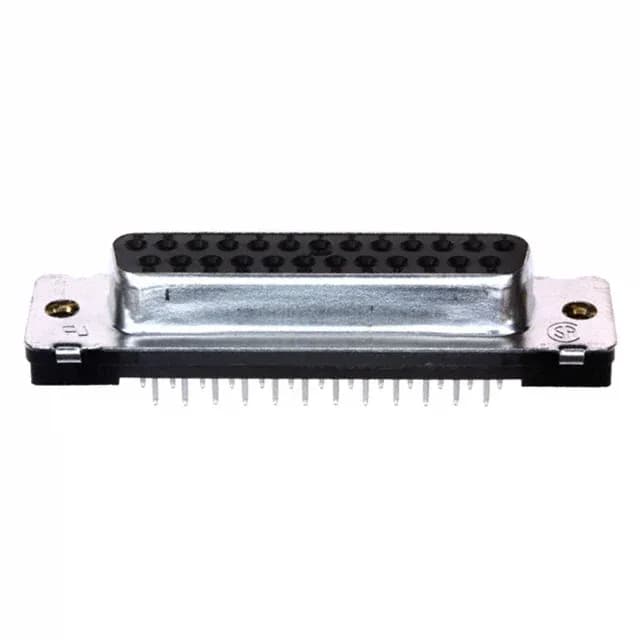

TE 5745967-7 AMPLIMITE HD-20 D-Sub Receptacle, 25 Pos, 6A

MPN5745967-7
Active

TE Connectivity AMPLIMITE HD-20 D-Sub receptacle, 25 positions, 2 rows, 6A, 125V, through-hole vertical solder, gold flash contacts, steel shell, UL94 V-0.

$9.1700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5745967-7 datasheet (PDF)
RoHSRoHS Compliant
SeriesAMPLIMITE HD-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5745967-7 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialPolyester
Shell material, finishSteel, Tin Plated

All specifications

5745967-7 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions25
Contact finish thicknessFlash

Product details

25-Position D-Sub Receptacle for Panel-Mount and Board-Mount Applications

The TE Connectivity 5745967-7 is a 25-position D-Sub receptacle from the AMPLIMITE HD-20 series, designed for vertical through-hole solder termination. It accepts female socket contacts with gold flash plating on phosphor bronze, rated for 6A per contact at 125V. The steel shell with tin plating includes integrated 4-40 threaded inserts for flange mounting to the mating plug or panel cutout.

What the Gold Flash Contact Finish Means for Your Application

If your design requires repeated field disconnect and reconnect, consider a version with heavier gold plating to avoid contact fretting and resistance drift.

Frequently asked questions

What is the mating connector for 5745967-7?

The 5745967-7 mates with a standard DB-25 (shell size 3, layout B) D-Sub plug with male pins, using the 4-40 threaded inserts for flange locking. Any AMPLIMITE HD-20 or industry-standard DB-25 plug with the same shell layout will fit.

Is 5745967-7 RoHS compliant?

Yes, the 5745967-7 is listed as RoHS compliant, meeting the directive requirements for restricted substances.
